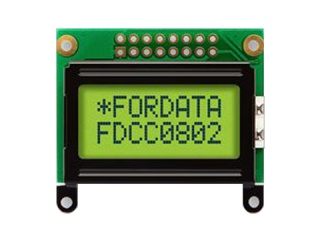

| Nombor Bahagian | FC0802C00-FHYYBH-91LE |
| Jenama | Fordata |
| Saiz | 1.1 |
| Permohonan | Instruments & Me |
| Resolusi | 5×8 |
| Komposisi | LCM, STN-LCD |
| Kecerahan | |
| CR | 10:1 |
| Warna | Monochrome |
| Lampu latar | YG-LED |
| Antara muka | 8-bit |
| pengilang | Fordata |
| nama model | FC0802C00-FHYYBH-91LE |
| saiz skrin | 1.1 inch |
| jenis skrin | LCM, STN-LCD |
| nombor char | 8 characters × 2 lines 7PPI |
| format char | 5×8 dots |
| char pitch(mm) | 3.35×5.15 (H×V) |
| saiz aksara (mm) | 2.95×4.75 (H×V) |
| kawasan aktif (mm) | 26.4 × 9.9 (H×V) |
| garis besar (mm) | 40 × 35.4 × 13 (H×V×D) |
| kawasan bezel (mm) | 30.4 × 13.9 (H×V) |
| rawatan | - |
| kecerahan | - |
| nisbah kontras | 10 : 1 (Typ.) (TM) |
| sudut pandangan | - |
| tindak balas | 150/150 (Typ.)(Tr/Td) ms |
| pandangan yang baik di | 6 o'clock |
| mod kerja | STN, Yellow/Green (Positive), Transflective |
| kedalaman warna | Monochrome |
| lampu latar | YG-LED , 20K hours , No Driver |
| jisim | - |
| digunakan untuk | Instruments & Meters |
| kadar segar semula | - |
| skrin sentuh | Without |
| jenis isyarat | 8-bit parallel , Pad 16 pins |
| bekalan voltan | 3.0V (Typ.) |
| maks. penilaian | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
