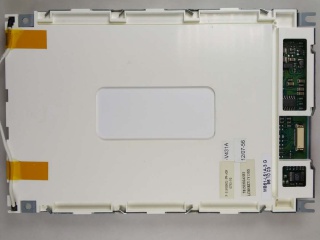

| Nombor Bahagian | F-51900NCU-FW-ADN |
| Jenama | OPTREX |
| Saiz | 5.7 |
| Permohonan | Industrial |
| Resolusi | 320×240 |
| Komposisi | CSTN-LCD, LCM |
| Kecerahan | |
| CR | 25:1 |
| Warna | Color |
| Lampu latar | CCFL |
| Antara muka | Parallel |
| jenama | OPTREX |
| model | F-51900NCU-FW-ADN |
| saiz pepenjuru | 5.7 inch |
| menaip | CSTN-LCD, LCM |
| format piksel | 320(RGB)×240 [QVGA] 70PPI |
| konfigurasi | RGB Vertical Stripe |
| kawasan aktif | 115.2(H)×86.4(V) mm |
| garis besar malap. | 168(H)×111(V) ×7.4(D) mm |
| kecerahan | 120 cd/m² (Typ.) |
| nisbah kontras | 25:1 (Typ.) (TM) |
| arah pandang | 12 o'clock |
| masa tindak balas | 300/100 (Typ.)(Tr/Td) |
| sudut pandangan | - |
| mod operasi | STN, Normally Black, Transmissive |
| warna sokongan | Color |
| sumber cahaya | CCFL , 20K hours , W/O Driver |
| berat badan | 234g (Max.) |
| direka untuk | Industrial |
| kadar bingkai | 70Hz |
| panel sentuh | Without |
| jenis antara muka | Parallel Data (1ch, 8-bit) |
| bekalan kuasa | 3.0/5.0V (Typ.)(VCC) |
| persekitaran | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| AA057QD01 | Mitsubishi | 5.7 | 320×240 |
| C555001 | SII | 5.7 | 320×240 |
| EL320.240.36 AGL | Lumineq | 5.7 | 320×240 |
| EL320.240.36 HB CCB | Lumineq | 5.7 | 320×240 |
| ER0570A2NC6 | EDT | 5.7 | 320×240 |
| LQ057V3DG02 | SHARP | 5.7 | 640×480 |
| SP14Q001-X | KOE | 5.7 | 320×240 |
| TM320240EGFWVSWD | Tianma | 5.7 | 320×240 |
| TX14D11VM1CAA | KOE | 5.7 | 320×240 |
| TX14D22VM1BAA | KOE | 5.7 | 320×240 |
