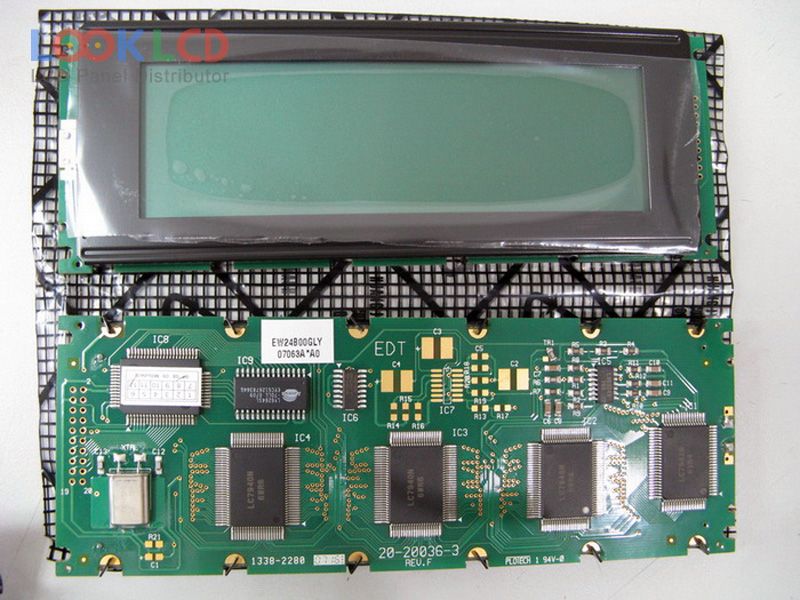

| Nombor Bahagian | EW24B00GLY |
| Jenama | EDT |
| Saiz | 5.2 |
| Permohonan | IA |
| Resolusi | 240×64 |
| Komposisi | LCM |
| Kecerahan | 65 |
| CR | 5:1 |
| Warna | Monochrome |
| Lampu latar | YG-LED |
| Antara muka | CPU |
| jenama panel | EDT |
| model panel | EW24B00GLY |
| jenis panel | STN-LCD , LCM |
| saiz panel | 5.2 inch |
| resolusi | 240×64 |
| mod paparan | STN, Transflective |
| kawasan aktif | 127.16×33.88 mm |
| garis besar | 180×65×16 mm |
| permukaan | |
| kecerahan | 65 cd/m² (Typ.) |
| nisbah kontras | 5:1 (Typ.)(Transmissive) |
| warna paparan | Monochrome |
| masa tindak balas | 83/176 (Typ.)(Tr/Td) |
| sudut pandangan | |
| jenis lampu | YG-LEDEmbedded (LED Driver) |
| antara muka isyarat | 8-bit parallel |
| voltan masukan | 5.0V (Typ.) |
| permohonan | IA |
