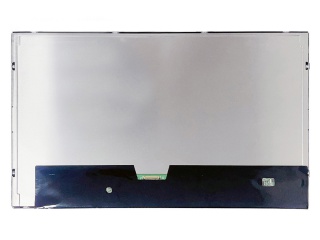

| Nombor Bahagian | EV156FHM-N10-5850 |
| Jenama | BOE |
| Saiz | 15.6 |
| Permohonan | Industrial |
| Resolusi | 1920×1080 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | |
| jenama | BOE |
| model | EV156FHM-N10-5850 |
| saiz pepenjuru | 15.6 inch |
| menaip | a-Si TFT-LCD, LCM |
| format piksel | 1920(RGB)×1080 [FHD] 141PPI |
| konfigurasi | RGB Vertical Stripe |
| kawasan aktif | 344.16(H)×193.59(V) mm |
| garis besar malap. | 363.8(H)×215.9(V) ×9.9(D) mm |
| kawasan bezel | 348.2(H)×197.6(V) mm |
| rawatan | Antiglare |
| kecerahan | 500 cd/m² (Typ.) |
| nisbah kontras | 800:1 (Typ.) (TM) |
| arah pandang | Symmetry |
| masa tindak balas | 30 (Typ.)(Tr+Td) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| mod operasi | ADS, Normally Black, Transmissive |
| warna sokongan | 16.7M 45% NTSC |
| sumber cahaya | WLED [8S4P] , 50K hours , With LED Driver |
| berat badan | 850g (Max.) |
| direka untuk | Industrial |
| kadar bingkai | 60Hz |
| panel sentuh | Without |
| Operating Temperature: 0 ~ 70 °C ; Storage Temperature: -20 ~ 80 °C |
