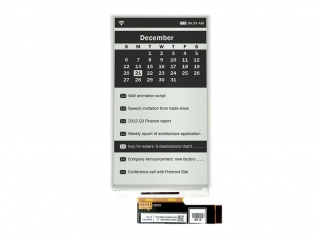

| Nombor Bahagian | ED047TC2 |
| Jenama | E Ink |
| Saiz | 4.7 |
| Permohonan | Mobile Phone |
| Resolusi | 540×960 |
| Komposisi | EPD, EPD |
| Kecerahan | |
| CR | |
| Warna | Grayscale |
| Lampu latar | No |
| Antara muka | Parallel |
| jenama | E Ink |
| model | ED047TC2 |
| saiz pepenjuru | 4.7 inch |
| menaip | EPD, EPD |
| format piksel | 540×960 [qHD] 235PPI |
| konfigurasi | Rectangle |
| kawasan aktif | 58.32(H)×103.68(V) mm |
| garis besar malap. | 62.5(H)×113.9(V) mm |
| kawasan bezel | - |
| rawatan | Hard coating |
| arah pandang | - |
| masa tindak balas | 450 |
| sudut pandangan | - |
| mod operasi | Reflective |
| warna sokongan | Grayscale |
| sumber cahaya | No B/L |
| berat badan | 12.0g |
| direka untuk | Mobile Phone |
| kadar bingkai | - |
| panel sentuh | Without |
| jenis antara muka | Parallel Data (1ch, 8-bit) Connector |
| persekitaran | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -25 ~ 70 °C |
