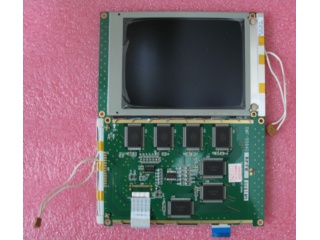

| Nombor Bahagian | DMF-50840NF-FW |
| Jenama | OPTREX |
| Saiz | 5.7 |
| Permohonan | Industrial |
| Resolusi | 320×240 |
| Komposisi | FSTN-LCD , LCM |
| Kecerahan | |
| CR | 15:1 |
| Warna | Monochrome |
| Lampu latar | 1 |
| Antara muka | |
| jenama panel | OPTREX |
| saiz panel | 5.7" |
| resolusi | 320×240, QVGA, 70PPI |
| kawasan paparan | 115.2(W)×86.4(H) mm |
| saiz garis besar | 167.1(W)×109(H) ×11(D) mm |
| kecerahan | 50 cd/m² (Typ.) |
| sudut pandangan | 40/50/30/40 (Typ.)(CR≥2) |
| pandangan terbaik pada | 6 o'clock |
| warna paparan | Monochrome |
| kekerapan | 75Hz |
| berat badan | 230g (Max.) |
| model panel | DMF-50840NF-FW |
| jenis panel | FSTN-LCD , LCM |
| format piksel | Rectangle |
| pembukaan bezel | 120.0(W)×90.0(H) mm |
| permukaan | - |
| nisbah kontras | 15:1 (Typ.) (TM) |
| mod paparan | STN, Black/White (Negative), Transmissive |
| masa tindak balas | 420/210 (Typ.)(Tr/Td) |
| jenis lampu | 1 pcs CCFL , 25K hours , Without Driver |
| skrin sentuh | Without |
| permohonan | Industrial |
