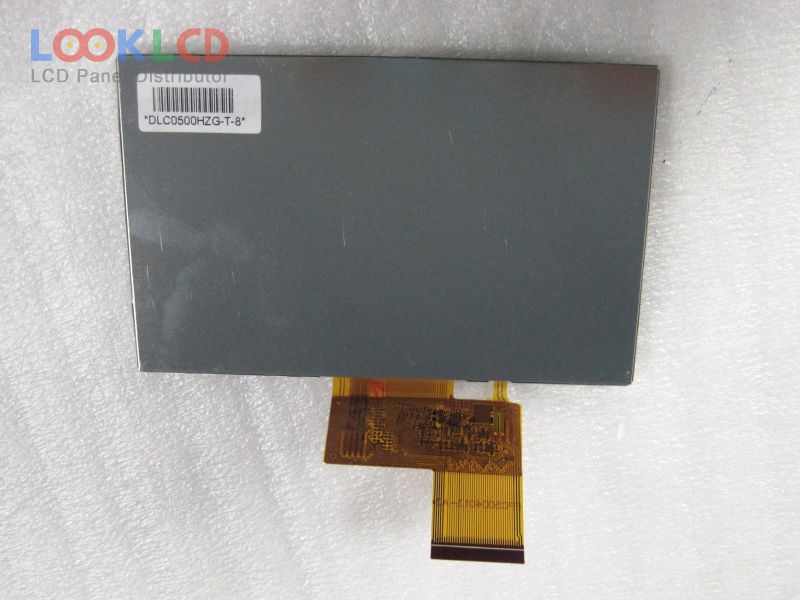

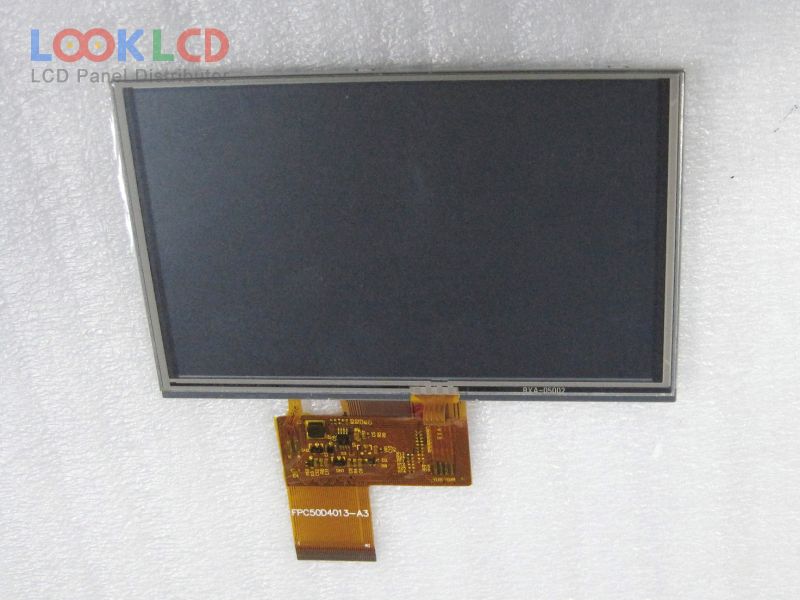

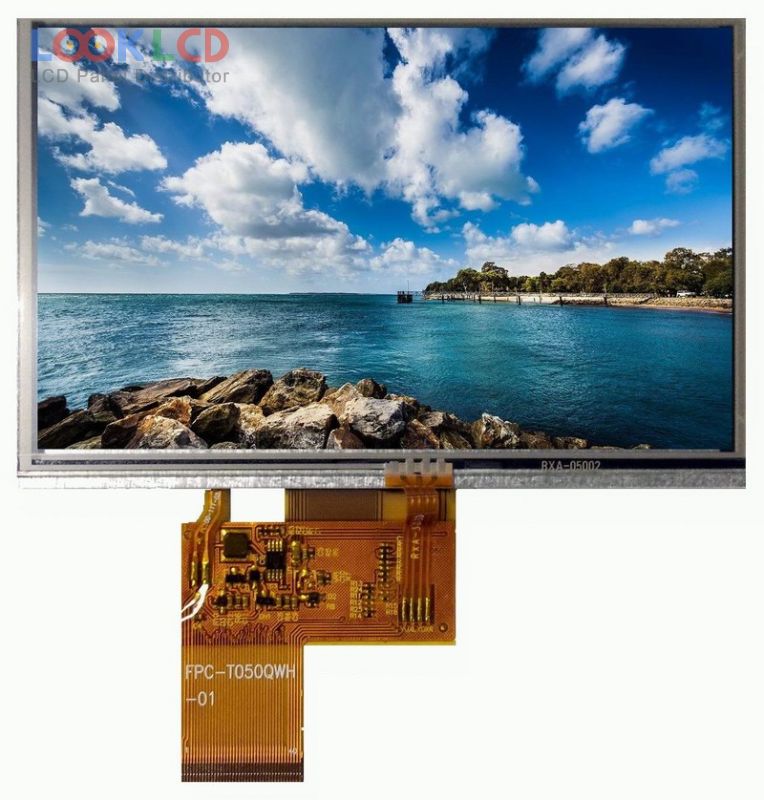

| Nombor Bahagian | DLC0500HZG-T-8 |
| Jenama | Other |
| Saiz | 5.0 |
| Permohonan | PND |
| Resolusi | 800×480 |
| Komposisi | LCM |
| Kecerahan | 640 |
| CR | 500:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | DLC |
| model panel | DLC0500HZG-T-8 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 5.0 inch |
| resolusi | 800(RGB)×480 , WVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 108×64.8 mm |
| garis besar | 120.7×75.8×4.5 mm |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | 640 cd/m² (Typ.) |
| nisbah kontras | 500:1 (Typ.) |
| warna paparan | 16.7M (8-bit), CIE193150% |
| masa tindak balas | 20 (Typ.)(Tr+Td) |
| sudut pandangan | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 10S2PWLEDWithout Driver |
| antara muka isyarat | Parallel RGB (1 ch, 8-bit), 40 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | PND |
