| Nombor Bahagian | COM70H7M24ULC |
| Jenama | Ortustech |
| Saiz | 7.0 |
| Permohonan | Industrial Outdoor H |
| Resolusi | 800×480 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 700:13:1 |
| Warna | 262K/16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama | Ortustech |
| model | COM70H7M24ULC |
| saiz pepenjuru | 7.0 inch |
| menaip | a-Si TFT-LCD, LCM |
| format piksel | 800(RGB)×480 [WVGA] 133PPI |
| konfigurasi | RGB Vertical Stripe |

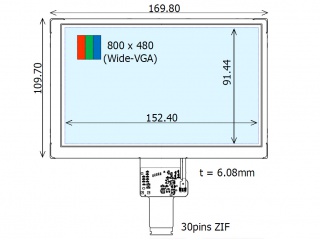

| kawasan aktif | 152.4(H)×91.44(V) mm |
| garis besar malap. | 169.8(H)×109.7(V) ×6.11(D) mm |
| kawasan bezel | - |
| rawatan | Hard coating (3H) |
| kecerahan | 790 cd/m² (Typ.) |
| nisbah kontras | 700:1 (Typ.) (TM) 3:1 (Typ.) (RF) |
| arah pandang | Symmetry |
| masa tindak balas | 60/40 (Max.)(Tr/Td) |
| sudut pandangan | 80/80/80/80 (Min.)(CR≥10) |
| mod operasi | VA, Normally Black, Transflective |
| warna sokongan | 262K/16.7M 50% NTSC |
| sumber cahaya | WLED [8S2P] , 100K hours , W/O Driver |
| berat badan | 170g (Typ.) |
| direka untuk | Industrial Outdoor High Brightness Automotive Display |
| kadar bingkai | 60Hz |
| panel sentuh | Without |
| jenis antara muka | LVDS (1 ch, 6/8-bit) , 30 pins FPC |
| bekalan kuasa | 3.3V (Typ.) |
| persekitaran | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 6.8G (66.64 m/s²) |
