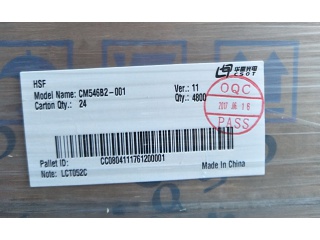

| Nombor Bahagian | CM546B2-001 |
| Jenama | CSOT |
| Saiz | 5.5 |
| Permohonan | Mobile Phone |
| Resolusi | 1080×1920 |
| Komposisi | LTPS TFT-LCD, CELL |
| Kecerahan | |
| CR | 1500:1 |
| Warna | 16.7M |
| Lampu latar | No |
| Antara muka | |
| jenama panel | CSOT |
| model panel | CM546B2-001 |
| saiz panel | 5.5" |
| jenis panel | LTPS TFT-LCD, CELL |
| resolusi | 1080(RGB)×1920, FHD, 403PPI |
| format piksel | RGB Vertical Stripe |
| kawasan paparan | 68.04(W)×120.96(H) mm |
| pembukaan bezel | - |
| saiz garis besar | 69.44(W)×126.81(H) ×0.45(D) mm |
| permukaan | With Polarizer |
| kecerahan | 0 cd/m² |
| nisbah kontras | 1500:1 (Typ.) (TM) |
| sudut pandangan | 80/80/80/80 (Typ.)(CR≥10) |
| mod paparan | FFS, Normally Black, Transmissive |
| pandangan terbaik pada | Symmetry |
| masa tindak balas | 35 (Typ.)(Tr+Td) |
| kedalaman kaca | 0.15+0.15 mm |
| ketransmisian | 4.69% (Typ.)(with APCF) |
| warna paparan | 16.7M 80% NTSC |
| jenis lampu | No B/L |
| kekerapan | - |
| skrin sentuh | In-Cell Touch |
| ic pemandu | COG Built-in TD4310 |
| berat panel | TBD |
| permohonan | Mobile Phone |
| persekitaran | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| CM546B1-002 | CSOT | 5.5 | 1080×1920 |
| E555HBM2 | EDO | 5.5 | 720×1280 |
| LH550WF1-SD01 | LG Display | 5.5 | 1080×1920 |
| LM6Q35 | SHARP | 5.5 | 320×240 |
| LS055R1SC01 | SHARP | 5.5 | 1440×2560 |
| NL3224AC35-01 | NLT | 5.5 | 320×240 |
| NL3224AC35-10 | NLT | 5.5 | 320×240 |
| NL3224BC35-20 | NLT | 5.5 | 320×240 |
| NL3224BC35-22 | NLT | 5.5 | 320×240 |
| TM055JDHP71 | Tianma | 5.5 | 720×1280 |
