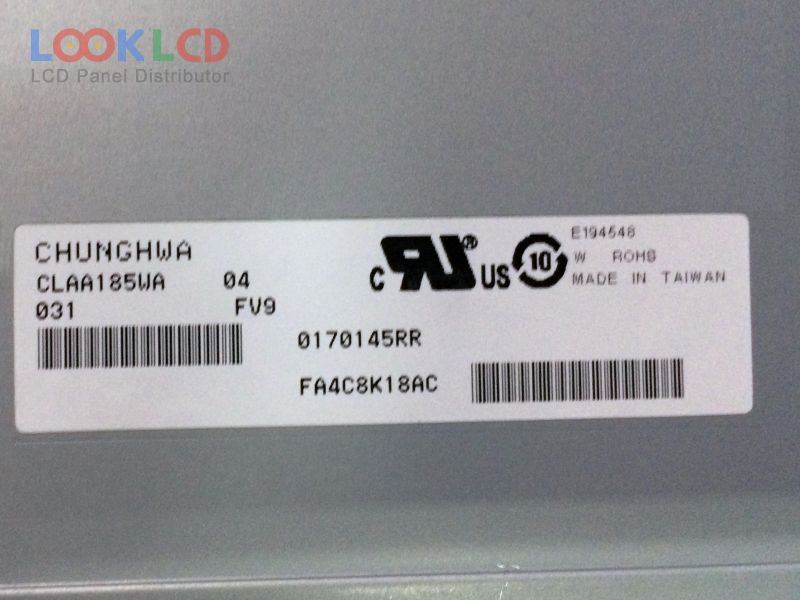

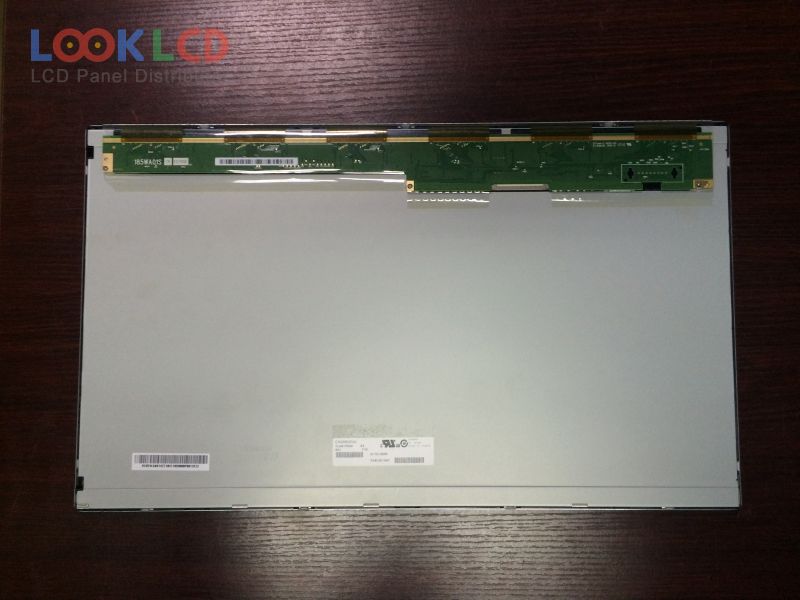

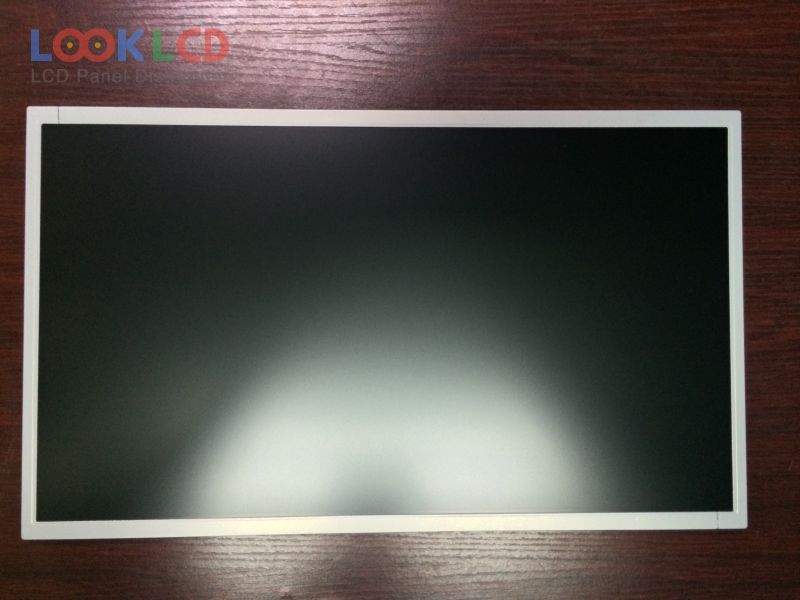

| Nombor Bahagian | CLAA185WA04 |
| Jenama | CPT |
| Saiz | 18.5 |
| Permohonan | DMPC |
| Resolusi | 1366×768 |
| Komposisi | LCM |
| Kecerahan | 250 |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | CPT |
| model panel | CLAA185WA04 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 18.5 inch |
| resolusi | 1366(RGB)×768 , WXGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 409.8×230.4 mm |
| garis besar | 430.37×254.6×11.5 mm |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | 250 cd/m² (Typ.) |
| nisbah kontras | 1000:1 (Typ.) |
| warna paparan | 16.7M (6-bit + Hi-FRC) |
| masa tindak balas | 5 (Typ.)(Tr+Td) |
| sudut pandangan | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | WLEDWithout Driver |
| antara muka isyarat | LVDS (1 ch, 8-bit), 30 pins |
| voltan masukan | 5.0V (Typ.) |
| permohonan | DMPC |
