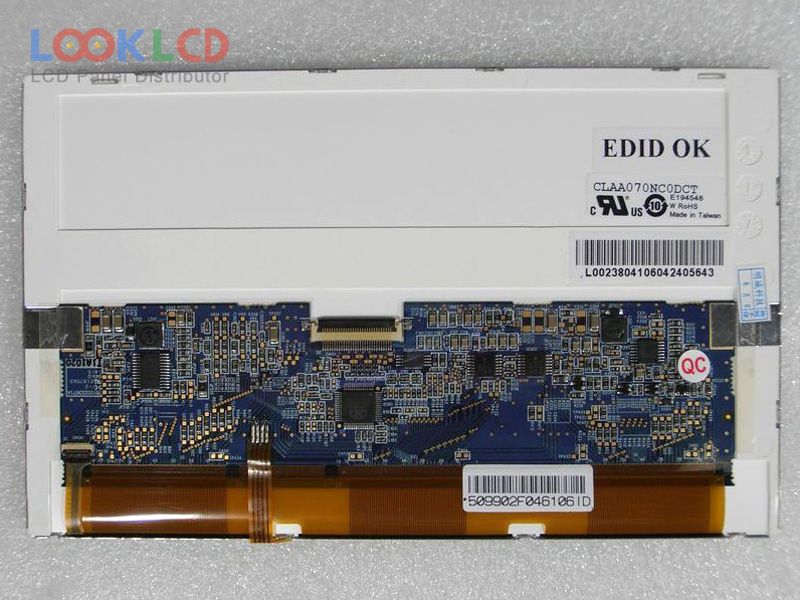

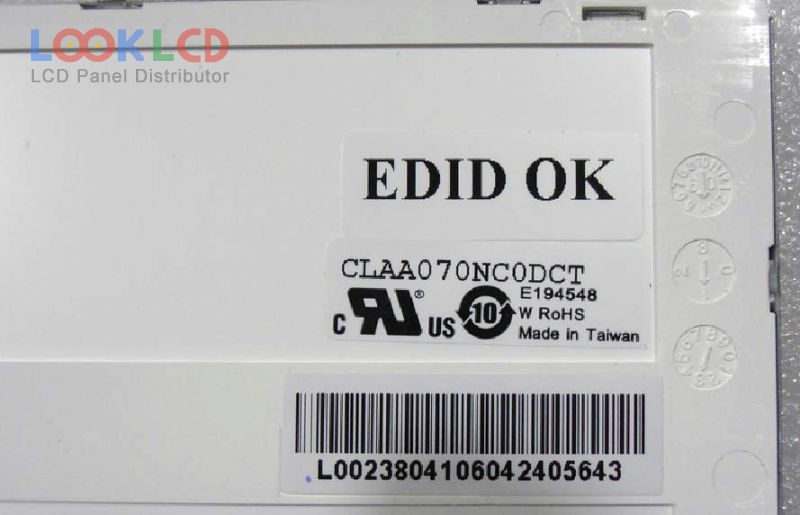

| Nombor Bahagian | CLAA070NC0DCT |
| Jenama | CPT |
| Saiz | 7.0 |
| Permohonan | MP4 |
| Resolusi | 1024×600 |
| Komposisi | LCM |
| Kecerahan | 300 |
| CR | 400:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | CPT |
| model panel | CLAA070NC0DCT |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 7.0 inch |
| resolusi | 1024(RGB)×600 , WSVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 153.6×90 mm |
| garis besar | 165×102×6.3 mm |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | 300 cd/m² (Typ.) |
| nisbah kontras | 400:1 (Typ.) |
| warna paparan | 262K (6-bit), CIE193150% |
| masa tindak balas | 20 (Max.)(Tr+Td) |
| sudut pandangan | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | WLEDEmbedded (LED Driver) |
| antara muka isyarat | LVDS (1 ch, 6-bit), 30 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | MP4 |
| CLAA070LC05CW | CPT | 7.0 | 800×480 |
| CLAA070LF06CW | CPT | 7.0 | 800×480 |
| CLAA070LFA1 CW | CPT | 7.0 | 800×480 |
| CLAA070MA21BW | CPT | 7.0 | 800×600 |
| CLAA070ND30CW | CPT | 7.0 | 1024×600 |
| CLAA070ND36CW | CPT | 7.0 | 1024×600 |
| CLAA070NJ01CW | CPT | 7.0 | 1024×600 |
| CLAA070NJ05CW | CPT | 7.0 | 1024×600 |
| CLAA070NJ07CW | CPT | 7.0 | 1024×600 |
| CLAA070WP06G XG | CPT | 7.0 | 800×1280 |
| AT070TNA2 | Innolux | 7.0 | 1024×600 |
| BA070WS1-100 | BOE | 7.0 | 1024×600 |
| BA070WS1-401 | BOE | 7.0 | 1024×600 |
| BA070WS1-402 | BOE | 7.0 | 1024×600 |
| CLAA070ND30CW | CPT | 7.0 | 1024×600 |
| HSD070PFW3-B02 | HannStar | 7.0 | 1024×600 |
| LB070WV4-TD02 | LG Display | 7.0 | 800×480 |
| LB070WV6-TD06 | LG Display | 7.0 | 800×480 |
| LMS700KF21 | Samsung | 7.0 | 800×480 |
| LW700AT9003 | Innolux | 7.0 | 800×480 |
