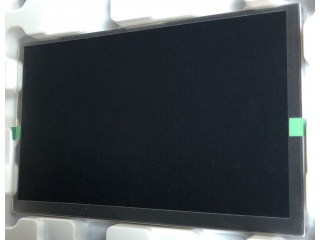

| Nombor Bahagian | CLAA070LQ02 XN |
| Jenama | CPT |
| Saiz | 7.0 |
| Permohonan | Automotive Display |
| Resolusi | 800×480 |
| Komposisi | LCM, a-Si TFT-LCD |
| Kecerahan | |
| CR | 900:1 |
| Warna | 262K/16.7M |
| Lampu latar | 7S2P |
| Antara muka | LVDS |
| pengilang | CPT |
| nama model | CLAA070LQ02 XN |
| saiz skrin | 7.0 inch |
| jenis skrin | LCM, a-Si TFT-LCD |
| nombor piksel | 800(RGB)×480 (WVGA) 133PPI |
| susunan | RGB Vertical Stripe |
| kawasan aktif (mm) | 152.4 × 91.44 (H×V) |
| garis besar (mm) | 165 × 104 × 7.3 (H×V×D) |
| kawasan bezel (mm) | 154.4 × 93.44 (H×V) |
| rawatan | Antiglare (Haze 25%) |
| kecerahan | 760 cd/m² (Typ.) |
| nisbah kontras | 900 : 1 (Typ.) (TM) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| tindak balas | 25 (Typ.)(Tr+Tf) ms |
| pandangan yang baik di | Symmetry |
| mod kerja | HFFS, Normally Black, Transmissive |
| kedalaman warna | 262K/16.7M 70% NTSC |
| lampu latar | 7S2P WLED , 30K hours , No Driver |
| jisim | 175g (Typ.) |
| digunakan untuk | Automotive Display |
| kadar segar semula | 60Hz |
| skrin sentuh | Without |
| jenis isyarat | LVDS (1 ch, 6/8-bit) , FPC 60 pins |
| bekalan voltan | 3.3/13.0/20.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| maks. penilaian | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
