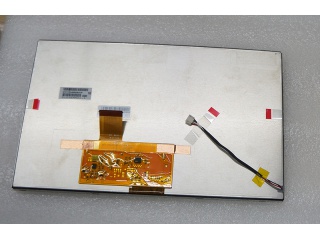

| Nombor Bahagian | C101EAN01.1 |
| Jenama | AUO |
| Saiz | 10.1 |
| Permohonan | Automotive Display |
| Resolusi | 1280×720 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | |
| jenama panel | AUO |
| model panel | C101EAN01.1 |
| saiz panel | 10.1" |
| jenis panel | a-Si TFT-LCD, LCM |
| resolusi | 1280(RGB)×720, WXGA, 145PPI |
| format piksel | RGB Vertical Stripe |
| kawasan paparan | 223.68(W)×125.82(H) mm |
| pembukaan bezel | - |
| kecerahan | - |
| nisbah kontras | 1000:1 (Typ.) (TM) |
| sudut pandangan | 80/80/80/80 (Typ.)(CR≥10) |
| mod paparan | AHVA, Normally Black, Transmissive |
| pandangan terbaik pada | Symmetry |
| masa tindak balas | 20/20 (Max.)(Tr/Td) |
| warna paparan | 16.7M |
| jenis lampu | WLED |
| kekerapan | 60Hz |
| skrin sentuh | Without |
| berat panel | - |
| permohonan | Automotive Display |
| persekitaran | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s²) |
