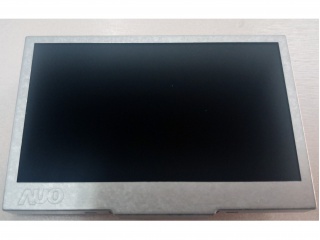

| Nombor Bahagian | C042FAN01.8 |
| Jenama | AUO |
| Saiz | 4.2 |
| Permohonan | Outdoor High Brightn |
| Resolusi | 480×272 |
| Komposisi | LCM, a-Si TFT-LCD |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 262K |
| Lampu latar | 3S2P |
| Antara muka | |
| pengilang | AUO |
| nama model | C042FAN01.8 |
| saiz skrin | 4.2 inch |
| jenis skrin | LCM, a-Si TFT-LCD |
| nombor piksel | 480(RGB)×272 (WQVGA) 131PPI |
| susunan | RGB Vertical Stripe |
| kawasan aktif (mm) | 92.88 × 52.632 (H×V) |
| garis besar (mm) | 102.8 × 68.52 × 20 (H×V×D) |
| kawasan bezel (mm) | - |
| rawatan | Antiglare |
| kecerahan | 700 cd/m² (Typ.) |
| nisbah kontras | 1000 : 1 (Typ.) (TM) |
| sudut pandangan | 80/80/80/80 (Min.)(CR≥10) |
| tindak balas | 13/14 (Typ.)(Tr/Td) ms |
| pandangan yang baik di | Symmetry |
| mod kerja | AHVA, Normally Black, Transmissive |
| kedalaman warna | 262K 71% NTSC |
| lampu latar | 3S2P WLED , 10K hours , No Driver |
| jisim | 89.8g (Typ.) |
| digunakan untuk | Outdoor High Brightness Automotive Display |
| kadar segar semula | 60Hz |
| skrin sentuh | Without |
| Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
