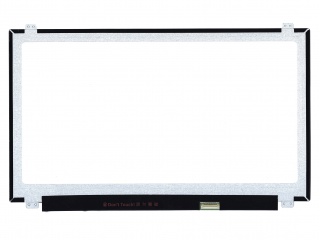

| Nombor Bahagian | B156HAN06.2 HWNA |
| Jenama | AUO |
| Saiz | 15.6 |
| Permohonan | Laptop |
| Resolusi | 1920×1080 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 700:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | eDP |
| jenama | AUO |
| model | B156HAN06.2 HWNA 39 Compatible |
| saiz pepenjuru | 15.6 inch |
| menaip | a-Si TFT-LCD, LCM |
| format piksel | 1920(RGB)×1080 [FHD] 141PPI |
| konfigurasi | RGB Vertical Stripe |
| kawasan aktif | 344.16(H)×193.59(V) mm |
| garis besar malap. | 359.5(H)×223.8(V) ×3.2(D) mm |
| kawasan bezel | - |
| rawatan | Glare (Haze 0%) |
| kecerahan | 220 cd/m² (Typ.) |
| nisbah kontras | 700:1 (Typ.) (TM) |
| arah pandang | Symmetry |
| masa tindak balas | 25 (Typ.)(Tr+Td) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| mod operasi | AHVA, Normally Black, Transmissive |
| warna sokongan | 262K 45% NTSC |
| sumber cahaya | WLED , 15K hours , With LED Driver |
| gaya bentuk | Slim (PCBA Flat, T≤3.2mm) |
| direka untuk | Laptop |
| kadar bingkai | 60Hz |
| panel sentuh | Without |
| jenis antara muka | eDP (2 Lanes) , 30 pins Connector |
| bekalan kuasa | 3.3V (Typ.) |
| persekitaran | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
