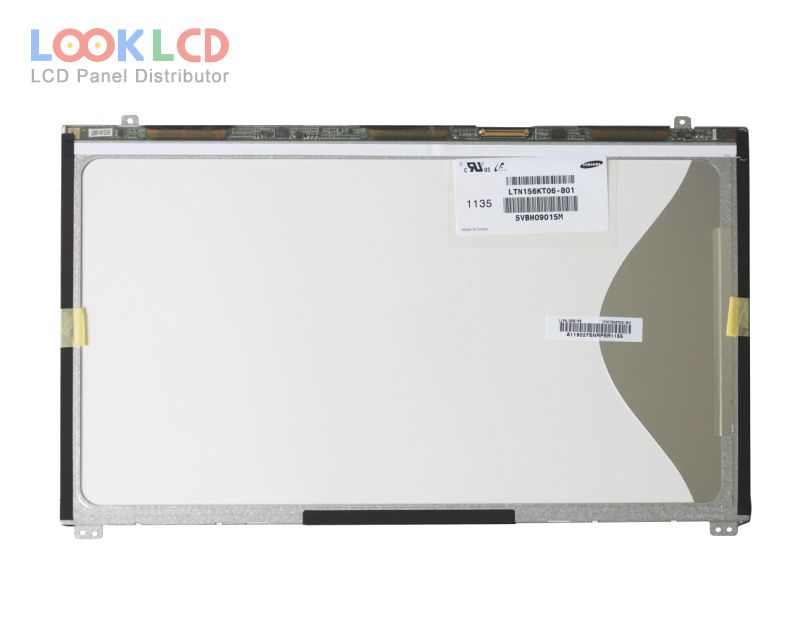

| Nombor Bahagian | LTN156KT06-801 |
| Jenama | Samsung |
| Saiz | 15.6 |
| Permohonan | NBPC |
| Resolusi | 1600×900 |
| Komposisi | LCM |
| Kecerahan | 300 |
| CR | 300:1 |
| Warna | 16.2M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | SAMSUNG |
| model panel | LTN156KT06-801 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 15.6 inch |
| resolusi | 1600(RGB)×900 , HD+ |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 344.16×193.59 mm |
| garis besar | 359.3×222.45×4 mm |
| gaya bentuk | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| permukaan | Antiglare (Haze 25%), Hard coating (3H) |
| kecerahan | 300 cd/m² (Typ.) |
| nisbah kontras | 300:1 (Min.) |
| warna paparan | 16.2M (6-bit + FRC), CIE193145% |
| masa tindak balas | 16 (Typ.)(Tr+Td) |
| sudut pandangan | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 10S4PWLEDEmbedded (LED Driver) |
| antara muka isyarat | LVDS (2 ch, 6-bit), 40 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | NBPC |
