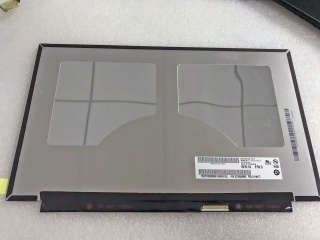

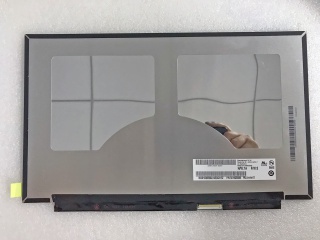

| Nombor Bahagian | B140QAN02.2 |
| Jenama | AUO |
| Saiz | 14.0 |
| Permohonan | Laptop |
| Resolusi | 2560×1440 |
| Komposisi | LTPS TFT-LCD, LCM |
| Kecerahan | |
| CR | 1500:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | eDP |
| jenama panel | AUO |
| model panel | B140QAN02.2 |
| saiz panel | 14.0" |
| jenis panel | LTPS TFT-LCD, LCM |
| resolusi | 2560(RGB)×1440, Quad-HD, 210PPI |
| format piksel | RGB Vertical Stripe |
| kawasan paparan | 309.35(W)×174.01(H) mm |
| pembukaan bezel | - |
| saiz garis besar | 315.05(W)×195.6(H) ×2.4(D) mm |
| permukaan | Hard coating (3H) |
| kecerahan | - |
| nisbah kontras | 1500:1 (Typ.) (TM) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| mod paparan | AHVA, Normally Black, Transmissive |
| pandangan terbaik pada | Symmetry |
| masa tindak balas | 25 (Typ.)(Tr+Td) |
| warna paparan | 16.7M |
| jenis lampu | WLED , 15K hours , With LED Driver |
| kekerapan | 60Hz |
| skrin sentuh | Without |
| gaya bentuk | Slim (PCBA Flat, T≤3.2mm) |
| permohonan | Laptop |
| antara muka isyarat | eDP (4 Lanes) Connector |
| voltan masukan | 3.3V (Typ.) |
| persekitaran | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| B140QAN01.0 | AUO | 14.0 | 2560×1440 |
| B140QAN01.1 | AUO | 14.0 | 2560×1440 |
| B140XW01 V4 | AUO | 14.0 | 1366×768 |
| BT140GW02 V.2 | Innolux | 14.0 | 1366×768 |
| BT140GW03 V.2 | Innolux | 14.0 | 1366×768 |
| LP140WH2-TLEA | LG Display | 14.0 | 1366×768 |
| LTN140AT07-401 | Samsung | 14.0 | 1366×768 |
| LTN140AT16-401 | Samsung | 14.0 | 1366×768 |
| LTN140AT21-801 | Samsung | 14.0 | 1366×768 |
| N140BGE-L33 | Innolux | 14.0 | 1366×768 |
