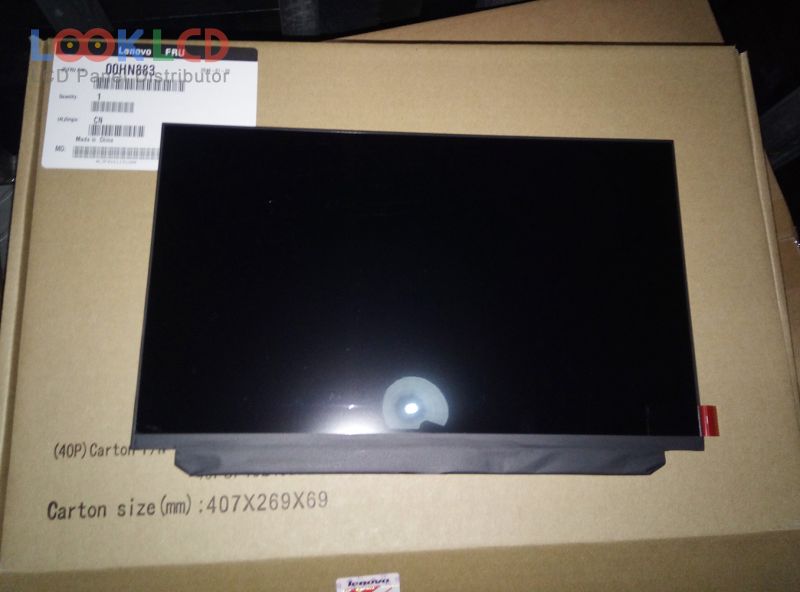

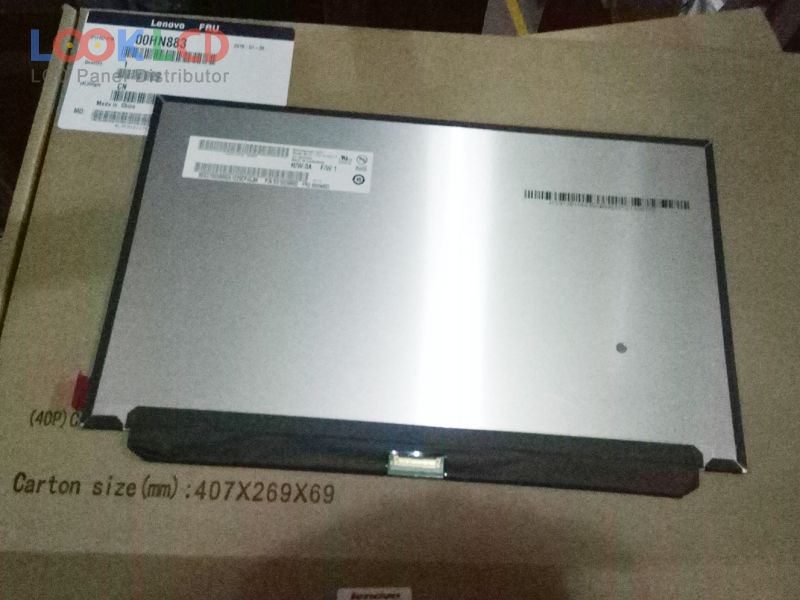

| Nombor Bahagian | B125HAN02.2 |
| Jenama | AUO |
| Saiz | 12.5 |
| Permohonan | NBPC |
| Resolusi | 1920×1080 |
| Komposisi | LCM |
| Kecerahan | 300 |
| CR | 700:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | eDP |
| jenama panel | AUO |
| model panel | B125HAN02.2 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 12.5 inch |
| resolusi | 1920(RGB)×1080 , FHD |
| mod paparan | AHVA, Normally Black, Transmissive |
| kawasan aktif | 276.48×155.52 mm |
| garis besar | 282.4×179.32×2.5 mm |
| gaya bentuk | Slim (PCBA Flat, Depth ≤3.2mm) |
| permukaan | Antiglare |
| kecerahan | 300 cd/m² (Typ.) |
| nisbah kontras | 700:1 (Typ.) |
| warna paparan | 16.7M (8-bit), CIE193150% |
| masa tindak balas | 25 (Typ.)(Tr+Td) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | WLEDEmbedded (LED Driver) |
| antara muka isyarat | eDP (2 Lanes), 30 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | NBPC |
