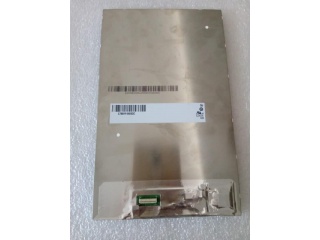

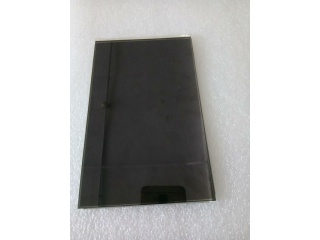

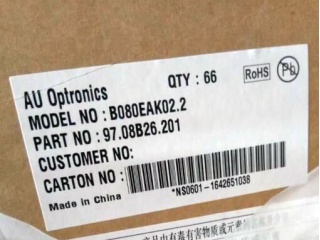

| Nombor Bahagian | B080EAK02.2 |
| Jenama | AUO |
| Saiz | 8.0 |
| Permohonan | Pad & Tablet |
| Resolusi | 800×1280 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 900:1 |
| Warna | 16.7M |
| Lampu latar | 4S5P |
| Antara muka | MIPI |
| jenama panel | AUO |
| model panel | B080EAK02.2 |
| saiz panel | 8.0" |
| jenis panel | a-Si TFT-LCD, LCM |
| resolusi | 800(RGB)×1280, WXGA, 188PPI |
| format piksel | RGB Vertical Stripe |
| kawasan paparan | 107.64(W)×172.224(H) mm |
| pembukaan bezel | - |
| saiz garis besar | 113.72(W)×183.764(H) ×4.1(D) mm |
| permukaan | Glare (Haze 0%) |
| kecerahan | 360 cd/m² (Typ.) |
| nisbah kontras | 900:1 (Typ.) (TM) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| mod paparan | AHVA, Normally Black, Transmissive |
| pandangan terbaik pada | Symmetry |
| masa tindak balas | 25 (Typ.)(Tr+Tf) |
| warna paparan | 16.7M 58% NTSC |
| jenis lampu | 4S5P WLED , 15K hours , Without Driver |
| kekerapan | 60Hz |
| skrin sentuh | Without |
| berat panel | 120g (Max.) |
| permohonan | Pad & Tablet |
| antara muka isyarat | MIPI (4 data lanes) , 39 pins Connector |
| voltan masukan | 1.8/3.3V (Typ.)(VCC1/VC2) |
| persekitaran | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
