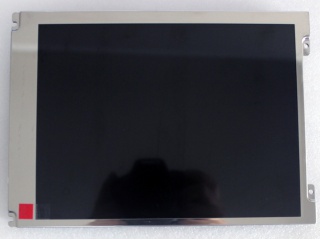

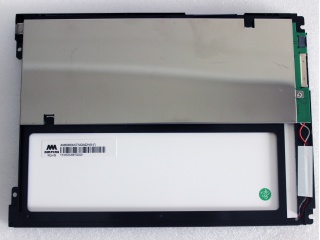

| Nombor Bahagian | AM-800600MGTMQW-02H |
| Jenama | AMPIRE |
| Saiz | 8.4 |
| Permohonan | Industrial |
| Resolusi | 800×600 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 600:1 |
| Warna | 16.7M |
| Lampu latar | 12S4P |
| Antara muka | LVDS |
| jenama panel | AMPIRE |
| model panel | AM-800600MGTMQW-02H |
| saiz panel | 8.4" |
| jenis panel | a-Si TFT-LCD, LCM |
| resolusi | 800(RGB)×600, SVGA, 119PPI |
| format piksel | RGB Vertical Stripe |
| kawasan paparan | 170.4(W)×127.8(H) mm |
| pembukaan bezel | 174.15(W)×131.2(H) mm |
| saiz garis besar | 203(W)×145.5(H) ×11.7(D) mm |
| permukaan | - |
| kecerahan | 350 cd/m² (Typ.) |
| nisbah kontras | 600:1 (Typ.) (TM) |
| sudut pandangan | 75/75/60/70 (Typ.)(CR≥10) |
| mod paparan | TN, Normally White, Transmissive |
| pandangan terbaik pada | - |
| masa tindak balas | 8 (Typ.)(Tr+Td) |
| warna paparan | 16.7M |
| jenis lampu | 12S4P WLED , 50K hours , With LED Driver |
| kekerapan | 60Hz |
| skrin sentuh | Without |
| berat panel | TBD |
| permohonan | Industrial |
| antara muka isyarat | LVDS (1 ch, 8-bit) , 20 pins Connector |
| voltan masukan | 3.3V (Typ.) |
| persekitaran | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
