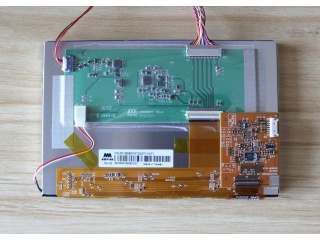

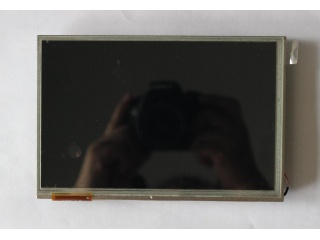

| Nombor Bahagian | AM-1280800P4TZQW-T11H |
| Jenama | AMPIRE |
| Saiz | 7.0 |
| Permohonan | Industrial |
| Resolusi | 1280×800 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | 6S4P |
| Antara muka | |
| jenama panel | AMPIRE |
| saiz panel | 7.0" |
| resolusi | 1280(RGB)×800, WXGA, 217PPI |
| kawasan paparan | 149.76(W)×93.6(H) mm |
| saiz garis besar | 162.3(W)×107.9(H) ×11.8(D) mm |
| kecerahan | 850 cd/m² (Typ.) |
| sudut pandangan | 80/80/80/80 (Typ.)(CR≥10) |
| pandangan terbaik pada | Symmetry |
| warna paparan | 16.7M 50% NTSC |
| kekerapan | 60Hz |
| berat badan | - |
| model panel | AM-1280800P4TZQW-T11H |
| jenis panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| pembukaan bezel | 152.76(W)×96.6(H) mm |
| permukaan | - |
| nisbah kontras | 800:1 (Typ.) (TM) |
| mod paparan | SFT, Normally Black, Transmissive |
| masa tindak balas | 35 (Typ.)(Tr+Td) |
| jenis lampu | 6S4P WLED , 50K hours , With LED Driver |
| skrin sentuh | PCAP |
| permohonan | Industrial |
