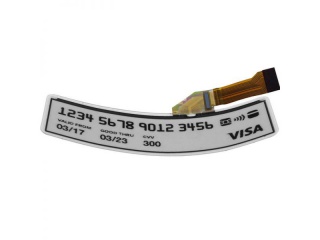

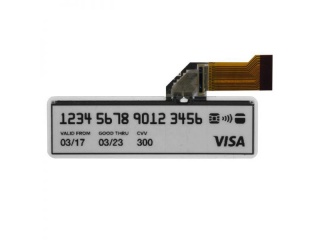

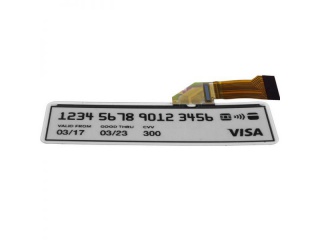

| Nombor Bahagian | 700524 |
| Jenama | Plastic Logic |
| Saiz | 3.1 |
| Permohonan | Wearable Electronic |
| Resolusi | 312×74 |
| Komposisi | EPD, EPD |
| Kecerahan | |
| CR | 10:1 |
| Warna | Grayscale |
| Lampu latar | No |
| Antara muka | 4-wire |
| jenama | Plastic Logic |
| model | 700524 |
| saiz pepenjuru | 3.1 inch |
| menaip | EPD, EPD |
| format piksel | 312×74 104PPI |
| konfigurasi | Rectangle |
| kawasan aktif | 75.5(H)×17.91(V) mm |
| garis besar malap. | 79.6(H)×23.54(V) ×0.53(D) mm |
| kawasan bezel | - |
| rawatan | Antiglare, Hard coating (2H) |
| kecerahan | - |
| nisbah kontras | 10:1 (Typ.) (RF) |
| arah pandang | - |
| masa tindak balas | 900 (Max.)(4 gray-level) |
| sudut pandangan | - |
| mod operasi | Reflective |
| warna sokongan | Grayscale |
| sumber cahaya | No B/L |
| berat badan | 2.20g (Typ.) |
| direka untuk | Wearable Electronic Price Tag |
| kadar bingkai | - |
| panel sentuh | Without |
| jenis antara muka | 4-wire SPI , 26 pins FPC |
| persekitaran | Operating Temperature: 0 ~ 40 °C ; Storage Temperature: -25 ~ 50 °C |
| AMFN888 | Samsung | 3.1 | 480×800 |
| EL160.120.39 | Lumineq | 3.1 | 160×120 |
| EL160.120.39 CC | Lumineq | 3.1 | 160×120 |
| HGS256641-Y-EH-LV | Other | 3.1 | 256×64 |
| LT031MDZ4000 | JDI | 3.1 | 720×720 |
| RGS31256032WH000 | RiTdisplay | 3.1 | 256×32 |
| UG-5664ALBEF01 | WiseChip | 3.1 | 256×64 |
| UG-5664ASGEF01 | WiseChip | 3.1 | 256×64 |
| UG-5664ASWEF01 | WiseChip | 3.1 | 256×64 |
| UG-5664ASYEF01 | WiseChip | 3.1 | 256×64 |
