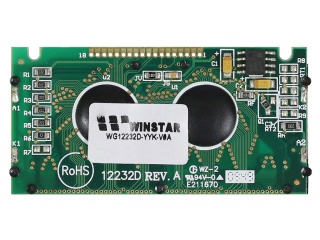

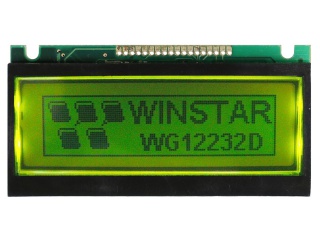

| Nombor Bahagian | WG12232D-YYK-VA |
| Jenama | Winstar |
| Saiz | 1.9 |
| Permohonan | Industrial Instrumen |
| Resolusi | 122×32 |
| Komposisi | STN-LCD , LCM |
| Kecerahan | |
| CR | 3:1 |
| Warna | Monochrome |
| Lampu latar | YG-LED |
| Antara muka | 8-bit |
| jenama panel | Winstar |
| saiz panel | 1.9" |
| resolusi | 122×32, 67PPI |
| kawasan paparan | 45.72(W)×11.97(H) mm |
| saiz garis besar | 59(W)×29.3(H) ×5.5(D) mm |
| kecerahan | - |
| sudut pandangan | 30/30/20/40 (Typ.)(CR≥2) |
| pandangan terbaik pada | 12 o'clock |
| warna paparan | Monochrome |
| kekerapan | - |
| berat panel | - |
| antara muka isyarat | 8-bit 6800 parallel , 18 pins Pad |
| voltan masukan | 5.0V (Typ.) |
| persekitaran | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| model panel | WG12232D-YYK-VA |
| jenis panel | STN-LCD , LCM |
| format piksel | Rectangle |
| pembukaan bezel | 52.0(W)×15.0(H) mm |
| permukaan | - |
| nisbah kontras | 3:1 (Typ.) (TM) |
| mod paparan | STN, Yellow/Green (Positive), Transflective |
| masa tindak balas | 100/100 (Typ.)(Tr/Td) |
| jenis lampu | YG-LED , 100K hours , With LED Driver |
| skrin sentuh | Without |
| permohonan | Industrial Instruments & Meters |
