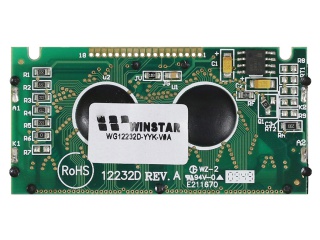

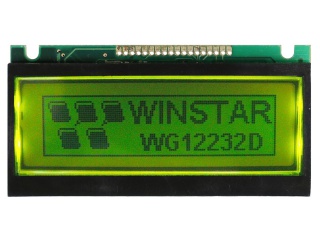

| Nombor Bahagian | WG12232D-YYH-V |
| Jenama | Winstar |
| Saiz | 1.9 |
| Permohonan | Industrial Instrumen |
| Resolusi | 122×32 |
| Komposisi | LCM , STN-LCD |
| Kecerahan | |
| CR | 3:1 |
| Warna | Monochrome |
| Lampu latar | YG-LED |
| Antara muka | 8-bit |
| pengilang | Winstar |
| saiz skrin | 1.9 inch |
| nombor piksel | 122×32 67PPI |
| kawasan aktif (mm) | 45.72 × 11.97 (H×V) |
| kawasan bezel (mm) | 52.0 × 15 (H×V) |
| kecerahan | - |
| sudut pandangan | 30/30/20/40 (Typ.)(CR≥2) |
| pandangan yang baik di | 6 o'clock |
| kedalaman warna | Monochrome |
| jisim | - |
| kadar segar semula | - |
| jenis isyarat | 8-bit 6800 parallel , 18 pins Pad |
| bekalan voltan | 5.0V (Typ.) |
| maks. penilaian | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| nama model | WG12232D-YYH-V |
| jenis skrin | LCM , STN-LCD |
| susunan | Rectangle |
| garis besar (mm) | 59 × 29.3 × 5.5 (H×V×D) |
| rawatan | - |
| nisbah kontras | 3 : 1 (Typ.) (TM) |
| tindak balas | 100/100 (Typ.)(Tr/Td) ms |
| mod kerja | STN, Yellow/Green (Positive), Transflective |
| lampu latar | YG-LED , 100K hours , With LED Driver |
| digunakan untuk | Industrial Instruments & Meters |
| skrin sentuh | Without |
