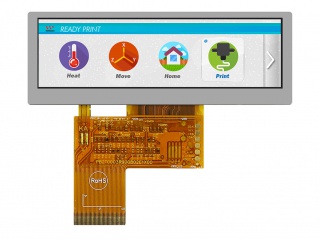

| Nombor Bahagian | WF39BSQASDNN0 |
| Jenama | Winstar |
| Saiz | 3.9 |
| Permohonan | Industrial Stretched |
| Resolusi | 480×128 |
| Komposisi | LCM, a-Si TFT-LCD |
| Kecerahan | |
| CR | 500:1 |
| Warna | 16.7M |
| Lampu latar | 7S2P |
| Antara muka | |
| pengilang | Winstar |
| nama model | WF39BSQASDNN0 |
| saiz skrin | 3.9 inch (1/2 cut of 4.3") |
| jenis skrin | LCM, a-Si TFT-LCD |
| nombor piksel | 480×128(RGB) 128PPI |
| susunan | RGB Horizontal Stripe |
| kawasan aktif (mm) | 95.04 × 25.34 (H×V) |
| garis besar (mm) | 105.5 × 37 × 3.25 (H×V×D) |
| kawasan bezel (mm) | 97.04 × 27.34 (H×V) |
| rawatan | Antiglare |
| kecerahan | 1000 cd/m² (Typ.) |
| nisbah kontras | 500 : 1 (Typ.) (TM) |
| sudut pandangan | 65/65/65/65 (Typ.)(CR≥10) |
| tindak balas | 10/15 (Typ.)(Tr/Td) ms |
| pandangan yang baik di | 6 o'clock |
| mod kerja | TN, Normally White, Transmissive |
| kedalaman warna | 16.7M |
| lampu latar | 7S2P WLED , 50K hours , No Driver |
| jisim | - |
| digunakan untuk | Industrial Stretched Bar LCD Automotive Display |
| kadar segar semula | - |
| skrin sentuh | Without |
| Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 80 °C |
