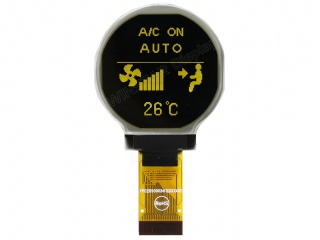

| Nombor Bahagian | WEO128128BL |
| Jenama | Winstar |
| Saiz | 1.2 |
| Permohonan | Wearable Round Displ |
| Resolusi | 128×128 |
| Komposisi | PM-OLED , OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(Yellow) |
| Lampu latar | self |
| Antara muka | 8-bit |
| jenama | Winstar |
| saiz pepenjuru | 1.2 inch |
| format piksel | 128×128 108PPI |
| kawasan aktif | 30(H)×30(V) mm |
| arah pandang | Symmetry |
| sudut pandangan | - |
| warna sokongan | Mono(Yellow) |
| berat badan | - |
| kadar bingkai | - |
| perincian d-ic | COG Built-in SSD1327ZB |
| jenis antara muka | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 24 pins FPC |
| bekalan kuasa | 3.0V (Typ.) |
| persekitaran | Operating Temperature: -40 ~ 80 °C ; Storage Temperature: -40 ~ 80 °C |
| model | WEO128128BL |
| menaip | PM-OLED , OLED |
| konfigurasi | Rectangle |
| garis besar malap. | 36.98(H)×41.23(V) ×2.25(D) mm |
| masa tindak balas | - |
| mod operasi | - |
| sumber cahaya | self |
| direka untuk | Wearable Round Display |
| panel sentuh | Without |
