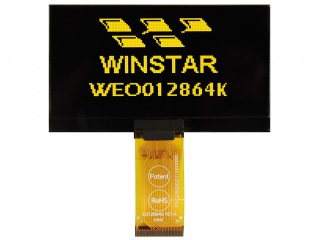

| Nombor Bahagian | WEO012864KL |
| Jenama | Winstar |
| Saiz | 2.7 |
| Permohonan | Handheld & PDA Instr |
| Resolusi | 128×64 |
| Komposisi | OLED , PM-OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(Yellow) |
| Lampu latar | self |
| Antara muka | 8-bit |
| pengilang | Winstar |
| saiz skrin | 2.7 inch |
| nombor piksel | 128×64 52PPI |
| kawasan aktif (mm) | 61.41 × 30.69 (H×V) |
| kawasan bezel (mm) | 63.41 × 32.69 (H×V) |
| sudut pandangan | - |
| pandangan yang baik di | Symmetry |
| kedalaman warna | Mono(Yellow) |
| jisim | - |
| kadar segar semula | - |
| senarai ic pemandu | Built-in COG SSD1309ZC |
| jenis isyarat | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 31 pins FPC |
| bekalan voltan | 3.0V (Typ.) |
| nama model | WEO012864KL |
| jenis skrin | OLED , PM-OLED |
| susunan | Rectangle |
| garis besar (mm) | 73 × 41.86 × 2.15 (H×V×D) |
| rawatan | - |
| tindak balas | - |
| mod kerja | - |
| lampu latar | self |
| digunakan untuk | Handheld & PDA Instruments & Meters |
| skrin sentuh | Without |
