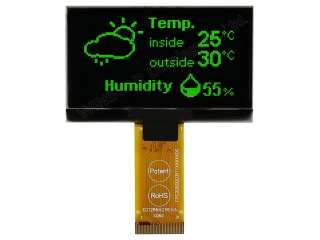

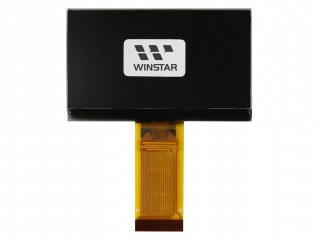

| Nombor Bahagian | WEO012864GG |
| Jenama | Winstar |
| Saiz | 2.4 |
| Permohonan | Handheld & PDA I |
| Resolusi | 128×64 |
| Komposisi | PM-OLED, OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(Green) |
| Lampu latar | self |
| Antara muka | 8-bit |
| jenama | Winstar |
| model | WEO012864GG |
| saiz pepenjuru | 2.4 inch |
| menaip | PM-OLED, OLED |
| format piksel | 128×64 59PPI |
| konfigurasi | Rectangle |
| kawasan aktif | 55.01(H)×27.49(V) mm |
| garis besar malap. | 60.5(H)×37(V) ×2.15(D) mm |
| kawasan bezel | 57.01(H)×28.9(V) mm |
| rawatan | - |
| arah pandang | Symmetry |
| masa tindak balas | - |
| sudut pandangan | - |
| mod operasi | - |
| warna sokongan | Mono(Green) |
| sumber cahaya | self |
| berat badan | - |
| direka untuk | Handheld & PDA Instruments & Meters |
| kadar bingkai | - |
| panel sentuh | Without |
| perincian d-ic | COG Built-in SSD1309ZC |
| jenis antara muka | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 30 pins FPC |
| bekalan kuasa | 3.0V (Typ.) |
