| Nombor Bahagian | WEO002002AS |
| Jenama | Winstar |
| Saiz | 2.9 |
| Permohonan | Instruments & Me |
| Resolusi | 20×26 |
| Komposisi | PM-OLED, OLED |
| Kecerahan | |
| CR | 2000:1 |
| Warna | Mono(Blue) |
| Lampu latar | self |
| Antara muka | 8-bit |
| jenama panel | Winstar |
| model panel | WEO002002AS |
| saiz panel | 2.9" |
| jenis panel | PM-OLED, OLED |
| format paparan | 20 characters × 2 lines, 6PPI |
| format fon | 5×8 dots |
| saiz watak | 3.22×5.57(W×H) mm |
| nada watak | 3.7×5.95(W×H) mm |
| kawasan paparan | 73.52(W)×11.52(H) mm |
| pembukaan bezel | 75.32(W)×13.52(H) mm |

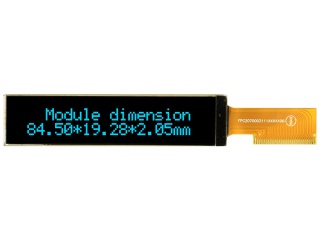

| saiz garis besar | 84.5(W)×19.2(H) ×2.15(D) mm |
| permukaan | - |
| kecerahan | - |
| nisbah kontras | 2000:1 (Typ.) (TM) |
| sudut pandangan | 88/88/88/88 |
| mod paparan | - |
| pandangan terbaik pada | Symmetry |
| masa tindak balas | 0.01 (Typ.) |
| warna paparan | Mono(Blue) |
| jenis lampu | self |
| kekerapan | - |
| skrin sentuh | Without |
| ic pemandu | COG Built-in SSD1311M1Z |
| berat panel | - |
| permohonan | Instruments & Meters |
| antara muka isyarat | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 32 pins FPC |
| voltan masukan | 3.3/5.0V (Typ.)(VDD) |
