| Nombor Bahagian | WEO002002AL |
| Jenama | Winstar |
| Saiz | 2.9 |
| Permohonan | Instruments & Me |
| Resolusi | 5×8 |
| Komposisi | PM-OLED, OLED |
| Kecerahan | |
| CR | 2000:1 |
| Warna | Mono(Yellow) |
| Lampu latar | self |
| Antara muka | 8-bit |
| jenama | Winstar |
| model | WEO002002AL |
| saiz pepenjuru | 2.9 inch |
| menaip | PM-OLED, OLED |
| format char | 5×8 dots |
| Saiz huruf | 3.22×5.57 mm |
| nada fon | 3.7×5.95 mm |
| kawasan aktif | 73.52(H)×11.52(V) mm |

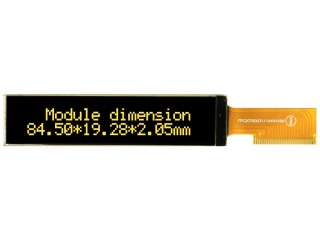

| garis besar malap. | 84.5(H)×19.2(V) ×2.15(D) mm |
| kawasan bezel | 75.32(H)×13.52(V) mm |
| rawatan | - |
| kecerahan | - |
| nisbah kontras | 2000:1 (Typ.) (TM) |
| arah pandang | Symmetry |
| masa tindak balas | 0.01 (Typ.) |
| sudut pandangan | 88/88/88/88 |
| mod operasi | - |
| warna sokongan | Mono(Yellow) |
| sumber cahaya | self |
| berat badan | - |
| direka untuk | Instruments & Meters |
| kadar bingkai | - |
| panel sentuh | Without |
| perincian d-ic | COG Built-in SSD1311M1Z |
| jenis antara muka | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 32 pins FPC |
| bekalan kuasa | 3.3/5.0V (Typ.)(VDD) |
