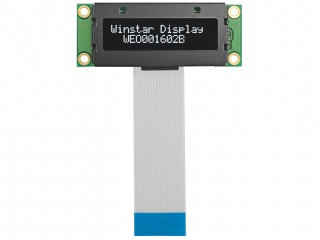

| Nombor Bahagian | WEO001602BW |
| Jenama | Winstar |
| Saiz | 1.22 |
| Permohonan | Instruments & Me |
| Resolusi | 16×213 |
| Komposisi | PM-OLED, OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(White) |
| Lampu latar | self |
| Antara muka | CPU/SPI |
| jenama panel | Winstar |
| model panel | WEO001602BW |
| saiz panel | 1.22" |
| jenis panel | PM-OLED, OLED |
| format paparan | 16 characters × 2 lines, 13PPI |
| format fon | 5×8 dots |
| saiz watak | 1.66×2.84(W×H) mm |
| nada watak | 1.94×3.11(W×H) mm |
| kawasan paparan | 30.69(W)×5.94(H) mm |
| pembukaan bezel | 36(W)×10(H) mm |
| saiz garis besar | 53(W)×20(H) ×7.6(D) mm |
| permukaan | - |
| sudut pandangan | - |
| mod paparan | - |
| pandangan terbaik pada | Symmetry |
| masa tindak balas | - |
| warna paparan | Mono(White) |
| jenis lampu | self |
| kekerapan | - |
| skrin sentuh | Without |
| ic pemandu | COGBuilt-in WS0012 |
| berat panel | - |
| permohonan | Instruments & Meters |
| antara muka isyarat | CPU/SPI , 16 pins FPC |
| voltan masukan | 5.0V (Typ.) |
