| Nombor Bahagian | WEH002004BL |
| Jenama | Winstar |
| Saiz | 2.9 |
| Permohonan | Instruments & Me |
| Resolusi | 5×8 |
| Komposisi | PM-OLED, OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(Yellow) |
| Lampu latar | self |
| Antara muka | CPU/SPI |
| jenama | Winstar |

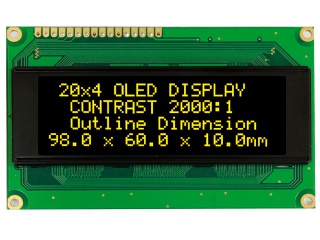

| model | WEH002004BL |
| saiz pepenjuru | 2.9 inch |
| menaip | PM-OLED, OLED |
| format char | 5×8 dots |
| Saiz huruf | 2.9×4.75 mm |
| nada fon | 3.54×5.4 mm |
| kawasan aktif | 70.16(H)×20.95(V) mm |
| garis besar malap. | 98(H)×60(V) ×10(D) mm |
| kawasan bezel | 77(H)×25.2(V) mm |
| rawatan | - |
| arah pandang | Symmetry |
| masa tindak balas | - |
| sudut pandangan | - |
| mod operasi | - |
| warna sokongan | Mono(Yellow) |
| sumber cahaya | self |
| berat badan | - |
| direka untuk | Instruments & Meters |
| kadar bingkai | - |
| panel sentuh | Without |
| perincian d-ic | COB Built-in WS0010 |
| jenis antara muka | CPU/SPI , 16 pins FPC |
| bekalan kuasa | 5.0V (Typ.) |
