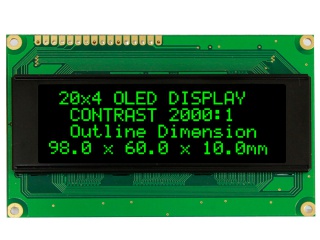

| Nombor Bahagian | WEH002004BG |
| Jenama | Winstar |
| Saiz | 2.9 |
| Permohonan | Instruments & Me |
| Resolusi | 20×47 |
| Komposisi | PM-OLED, OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(Green) |
| Lampu latar | self |
| Antara muka | CPU/SPI |
| jenama panel | Winstar |
| model panel | WEH002004BG |
| saiz panel | 2.9" |
| jenis panel | PM-OLED, OLED |
| format paparan | 20 characters × 4 lines, 7PPI |
| format fon | 5×8 dots |
| saiz watak | 2.9×4.75(W×H) mm |
| nada watak | 3.54×5.4(W×H) mm |
| kawasan paparan | 70.16(W)×20.95(H) mm |
| pembukaan bezel | 77(W)×25.2(H) mm |
| saiz garis besar | 98(W)×60(H) ×10(D) mm |
| permukaan | - |
| sudut pandangan | - |
| mod paparan | - |
| pandangan terbaik pada | Symmetry |
| masa tindak balas | - |
| warna paparan | Mono(Green) |
| jenis lampu | self |
| kekerapan | - |
| skrin sentuh | Without |
| ic pemandu | COB Built-in WS0010 |
| berat panel | - |
| permohonan | Instruments & Meters |
| antara muka isyarat | CPU/SPI , 16 pins FPC |
| voltan masukan | 5.0V (Typ.) |
