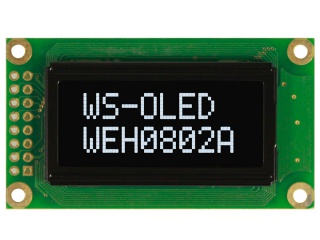

| Nombor Bahagian | WEH000802AW |
| Jenama | Winstar |
| Saiz | 1.2 |
| Permohonan | Instruments & Me |
| Resolusi | 8×26 |
| Komposisi | PM-OLED, OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(White) |
| Lampu latar | self |
| Antara muka | CPU/SPI |
| jenama panel | Winstar |
| model panel | WEH000802AW |
| saiz panel | 1.2" |
| jenis panel | PM-OLED, OLED |
| format paparan | 8 characters × 2 lines, 6PPI |
| format fon | 5×8 dots |
| saiz watak | 2.96×5.56(W×H) mm |
| nada watak | 3.6×6.3(W×H) mm |
| kawasan paparan | 28.16(W)×11.89(H) mm |
| pembukaan bezel | 38(W)×16(H) mm |
| saiz garis besar | 58(W)×32(H) ×10(D) mm |
| permukaan | - |
| sudut pandangan | - |
| mod paparan | - |
| pandangan terbaik pada | Symmetry |
| masa tindak balas | - |
| warna paparan | Mono(White) |
| jenis lampu | self |
| kekerapan | - |
| skrin sentuh | Without |
| ic pemandu | COBBuilt-in WS0010 |
| berat panel | - |
| permohonan | Instruments & Meters |
| antara muka isyarat | CPU/SPI , 16 pins Pad |
| voltan masukan | 5.0V (Typ.) |
