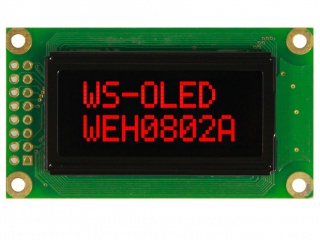

| Nombor Bahagian | WEH000802AR |
| Jenama | Winstar |
| Saiz | 1.2 |
| Permohonan | Instruments & Me |
| Resolusi | 5×8 |
| Komposisi | PM-OLED, OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(Red) |
| Lampu latar | self |
| Antara muka | CPU/SPI |
| jenama | Winstar |
| model | WEH000802AR |
| saiz pepenjuru | 1.2 inch |
| menaip | PM-OLED, OLED |
| format char | 5×8 dots |
| Saiz huruf | 2.96×5.56 mm |
| nada fon | 3.6×6.3 mm |
| kawasan aktif | 28.16(H)×11.89(V) mm |
| garis besar malap. | 58(H)×32(V) ×10(D) mm |
| kawasan bezel | 38(H)×16(V) mm |
| rawatan | - |
| arah pandang | Symmetry |
| masa tindak balas | - |
| sudut pandangan | - |
| mod operasi | - |
| warna sokongan | Mono(Red) |
| sumber cahaya | self |
| berat badan | - |
| direka untuk | Instruments & Meters |
| kadar bingkai | - |
| panel sentuh | Without |
| perincian d-ic | COB Built-in WS0010 |
| jenis antara muka | CPU/SPI , 16 pins Pad |
| bekalan kuasa | 5.0V (Typ.) |
| LPM012A154A | JDI | 1.2 | 218×218 |
| LS012B4DG01 | SHARP | 1.2 | 184×38 |
| LS012B7DD01 | SHARP | 1.2 | 184×38 |
| LS012B7DH02 | SHARP | 1.2 | 240×240 |
| NVK-080SC002T-S-0200 | Neoview Kolon | 1.2 | 128×80 |
