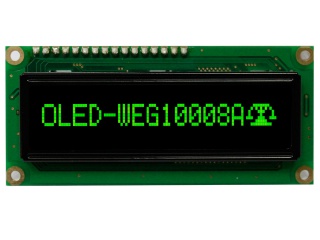

| Nombor Bahagian | WEG010008AG |
| Jenama | Winstar |
| Saiz | 2.4 |
| Permohonan | Instruments & Me |
| Resolusi | 100×8 |
| Komposisi | PM-OLED, OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(Green) |
| Lampu latar | self |
| Antara muka | CPU/SPI |
| jenama | Winstar |
| model | WEG010008AG |
| saiz pepenjuru | 2.4 inch |
| menaip | PM-OLED, OLED |
| format piksel | 100×8 42PPI |
| konfigurasi | Rectangle |
| kawasan aktif | 59.95(H)×6.35(V) mm |
| garis besar malap. | 80(H)×36(V) ×10(D) mm |
| kawasan bezel | 66.0(H)×16.0(V) mm |
| rawatan | - |
| arah pandang | Symmetry |
| masa tindak balas | - |
| sudut pandangan | - |
| mod operasi | - |
| warna sokongan | Mono(Green) |
| sumber cahaya | self |
| berat badan | - |
| direka untuk | Instruments & Meters |
| kadar bingkai | - |
| panel sentuh | Without |
| perincian d-ic | COB Built-in WS0010 |
| jenis antara muka | CPU/SPI , 16 pins Pad |
| bekalan kuasa | 5.0V (Typ.) |
