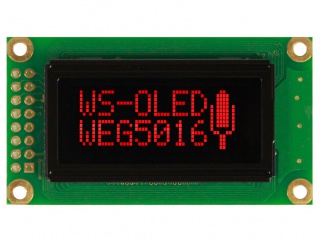

| Nombor Bahagian | WEG005016AR |
| Jenama | Winstar |
| Saiz | 1.26 |
| Permohonan | Instruments & Meters |
| Resolusi | 50×16 |
| Komposisi | PM-OLED , OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(Red) |
| Lampu latar | self |
| Antara muka | CPU/SPI |
| jenama panel | Winstar |
| saiz panel | 1.26" |
| resolusi | 50×16, 41PPI |
| kawasan paparan | 29.96(W)×11.16(H) mm |
| saiz garis besar | 58(W)×32(H) ×10(D) mm |
| sudut pandangan | - |
| pandangan terbaik pada | Symmetry |
| warna paparan | Mono(Red) |
| kekerapan | - |
| ic pemandu | COB Built-in WS0010 |
| berat panel | - |
| antara muka isyarat | CPU/SPI , 16 pins Pad |
| voltan masukan | 5.0V (Typ.) |
| model panel | WEG005016AR |
| jenis panel | PM-OLED , OLED |
| format piksel | Rectangle |
| pembukaan bezel | 38(W)×16(H) mm |
| permukaan | - |
| mod paparan | - |
| masa tindak balas | - |
| jenis lampu | self |
| skrin sentuh | Without |
| permohonan | Instruments & Meters |
