BOE VS035ZSM-NW0-69P0 lembaran data, spesifikasi, stok, aplikasi www.looklcd-my.com

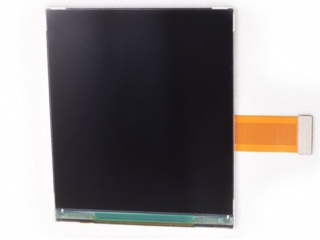

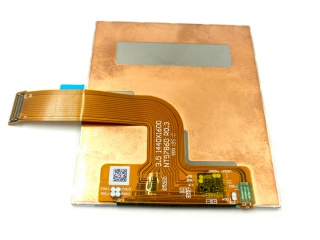

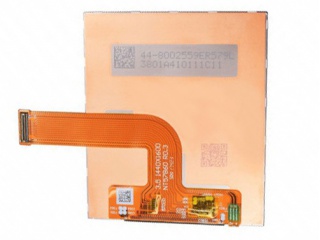

VS035ZSM-NW0-69P0


Jenama
BOE
Saiz
3.5
Permohonan
HMD VR AR
Resolusi
1440×1600
Komposisi
LTPS TFT-LCD , LCM
Kecerahan
CR
700:1
Warna
16.7M
Lampu latar
WLED
Antara muka
In Stock
18448
Spesifikasi

Nombor Bahagian VS035ZSM-NW0-69P0
JenamaBOE
Saiz3.5
PermohonanHMD VR AR
Resolusi1440×1600
KomposisiLTPS TFT-LCD , LCM
Kecerahan
CR700:1
Warna16.7M
Lampu latarWLED
Antara muka
jenamaBOE
saiz pepenjuru3.5 inch
format piksel1440(RGB)×1600  615PPI
kawasan aktif59.4(H)×66(V) mm
kawasan bezel-
kecerahan200 cd/m² (Typ.)
arah pandangSymmetry
sudut pandangan70/70/70/70 (Typ.)(CR≥10)
warna sokongan16.7M   85% NTSC
berat badan17.0±2.0g
kadar bingkai90Hz
modelVS035ZSM-NW0-69P0
menaipLTPS TFT-LCD , LCM
konfigurasiRGB Vertical Stripe
garis besar malap.62.2(H)×73.6(V) mm
rawatanWithout Polarizer, Hard coating (3H)
nisbah kontras700:1 (Typ.) (TM)
masa tindak balas5 (Max.)(G to G)
mod operasiADS, Normally Black, Transmissive
sumber cahayaWLED  [5S2P] , W/O Driver
direka untukHMD VR AR
panel sentuhWithout
Model Keluarga
990000738A Innolux 3.5 320×240
LH350WS1-SD01 LG Display 3.5 640×960
LQ035Q5DG01 SHARP 3.5 320×240
LQ035Q7DB02R SHARP 3.5 240×320
LTP350QV-E06 Samsung 3.5 240×320
LTV350QV-F0E Samsung 3.5 320×240
NL2432HC22-22B NLT 3.5 240×320
TCG035QVLPDANN-GN50 Kyocera 3.5 320×240
TM035KDH03 Tianma 3.5 320×240
TM035KDH16-09 Tianma 3.5 320×240
