| Nombor Bahagian | VLT320-SBL-FHD-257 |
| Jenama | Vitrolight |
| Saiz | 29.3 |
| Permohonan | Digital Signage Stre |
| Resolusi | 1920×708 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 5000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | Vitrolight |
| model panel | VLT320-SBL-FHD-257 |
| saiz panel | 29.3" (2/3 cut of 32") |
| jenis panel | a-Si TFT-LCD, LCM |
| resolusi | 1920(RGB)×708, 69PPI |
| format piksel | RGB Vertical Stripe |
| kawasan paparan | 698.4(W)×257.4(H) mm |
| pembukaan bezel | 704.1(W)×259.04(H) mm |
| saiz garis besar | 728.27(W)×289.04(H) ×26.5(D) mm |
| permukaan | - |
| kecerahan | 700 cd/m² (Typ.) |
| nisbah kontras | 5000:1 (Typ.) (TM) |
| sudut pandangan | 88/88/88/88 (Typ.)(CR≥20) |
| mod paparan | SVA, Normally Black, Transmissive |
| pandangan terbaik pada | Symmetry |
| masa tindak balas | 8 (Typ.)(G to G) |
| warna paparan | 16.7M 72% NTSC |
| jenis lampu | WLED |
| kekerapan | 60Hz |
| skrin sentuh | Without |
| berat panel | - |

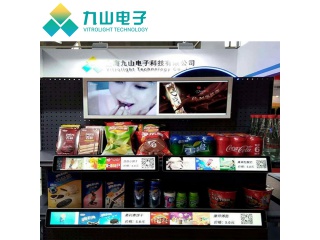

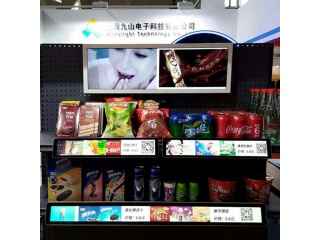

| permohonan | Digital Signage Stretched Bar LCD |
| antara muka isyarat | LVDS (2 ch, 8-bit) Connector |
| persekitaran | Operating Temp.: 0 ~ 50 °C ; - |
