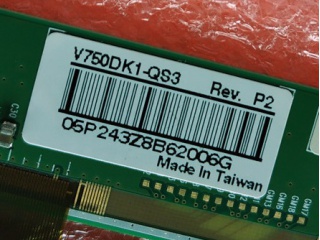

| Nombor Bahagian | V750DK1-QS3 Rev.P2 |
| Jenama | Innolux |
| Saiz | 75 |
| Permohonan | TV Sets |
| Resolusi | 3840×2160 |
| Komposisi | a-Si TFT-LCD , CELL |
| Kecerahan | |
| CR | 5000:1 |
| Warna | 1.07B |
| Lampu latar | No |
| Antara muka | V-by-One |
| jenama | Innolux |
| saiz pepenjuru | 75 inch |
| format piksel | 3840(RGB)×2160 [UHD] 59PPI |
| kawasan aktif | 1650.24(H)×928.26(V) mm |
| kawasan bezel | - |
| kecerahan | 0 cd/m² |
| arah pandang | Symmetry |
| sudut pandangan | 88/88/88/88 (Typ.)(CR≥10) |
| ketebalan plat | 0.50+0.50 mm |
| warna sokongan | 1.07B 71% NTSC |
| berat badan | 4.87±0.25Kgs (Typ.) |
| kadar bingkai | 120Hz |
| perincian d-ic | COF Built-in 24 source + 16 gate chips |
| jenis antara muka | V-by-One 8 lane , 56 pins Connector |
| bekalan kuasa | 12.0V (Typ.) |
| persekitaran | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| model | V750DK1-QS3 Rev.P2 |
| menaip | a-Si TFT-LCD , CELL |
| konfigurasi | RGB Vertical Stripe |
| garis besar malap. | 1662.24(H)×941.96(V) ×1.32(D) mm |
| rawatan | Clear, Hard coating (3H), Reflection 1.8% (Typ.) |
| nisbah kontras | 5000:1 (Typ.) (TM) |
| masa tindak balas | 6.5 (Typ.)(G to G) |
| mod operasi | Super MVA, Normally Black, Transmissive |
| penghantaran | 5.0% (Typ.)(with Polarizer) |
| sumber cahaya | No B/L |
| direka untuk | TV Sets |
| panel sentuh | Without |
