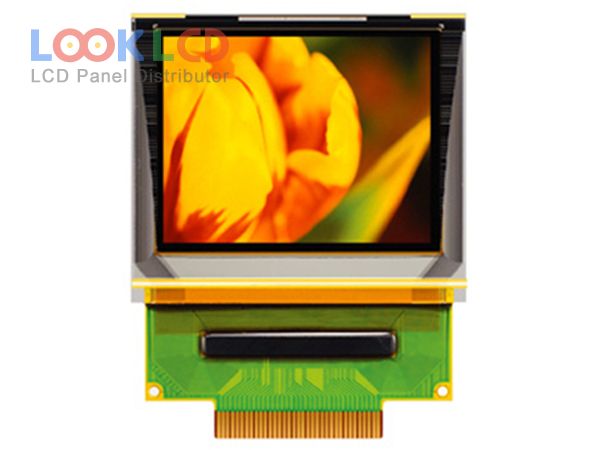

| Nombor Bahagian | UG-6028GDEAF01 |
| Jenama | WiseChip |
| Saiz | 1.45 |
| Permohonan | IA |
| Resolusi | 160×128 |
| Komposisi | OLED |
| Kecerahan | 100 |
| CR | 2000:1 |
| Warna | 262K |
| Lampu latar | self |
| Antara muka | CPU/RGB/SPI |
| jenama panel | Univision |
| model panel | UG-6028GDEAF01 |
| jenis panel | PM-OLED , OLED |
| saiz panel | 1.45 inch |
| resolusi | 160(RGB)×128 |
| kawasan aktif | 28.78×23.024 mm |
| garis besar | 35.8×30.8×1.7 mm |
| permukaan | |
| kecerahan | 100 cd/m² (Typ.) |
| nisbah kontras | 2000 : 1 (Typ.) |
| warna paparan | 262K (6-bit) |
| sudut pandangan | 80/80/80/80 (Min.)(L/R/U/D) |
| ic pemandu | COF Built-in SEPS525 |
| antara muka isyarat | 8/9-bit 8080 parallel, 6-bit RGB, 4-wire SPI, 35 pins |
| voltan masukan | 2.8/2.8/13V (Typ.)(VDD/VDDIO/VDDH) |
| rohs: | |
| permohonan | IA |
