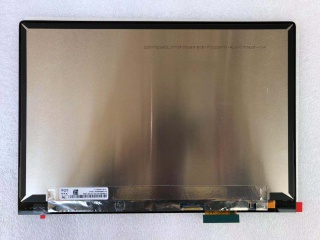

| Nombor Bahagian | TV122WXM-AL0 |
| Jenama | BOE |
| Saiz | 12.2 |
| Permohonan | Laptop |
| Resolusi | 1280×800 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 900:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | eDP |
| pengilang | BOE |
| nama model | TV122WXM-AL0 |
| saiz skrin | 12.2 inch |
| jenis skrin | LCM , a-Si TFT-LCD |
| nombor piksel | 1280(RGB)×800 (WXGA) 123PPI |
| susunan | RGB Vertical Stripe |
| kawasan aktif (mm) | 262.565 × 164.16 (H×V) |
| garis besar (mm) | 278.46 × 193.26 × 3.4 (H×V×D) |
| kawasan bezel (mm) | - |
| rawatan | Hard coating |
| kecerahan | 350 cd/m² (Typ.) |
| nisbah kontras | 900 : 1 (Typ.) (TM) |
| sudut pandangan | 80/80/80/80 (Typ.)(CR≥10) |
| tindak balas | 30 (Typ.)(Tr+Td); 45 (Typ.)(G to G) ms |
| pandangan yang baik di | Symmetry |
| mod kerja | ADS, Normally Black, Transmissive |
| kedalaman warna | 16.7M 50% NTSC |
| lampu latar | WLED , No Driver |
| bentuk garis besar | - |
| digunakan untuk | Laptop |
| kadar segar semula | 60Hz |
| skrin sentuh | Without |
| jenis isyarat | eDP (1 Lane) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| bekalan voltan | 3.3V (Typ.) |
| maks. penilaian | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
