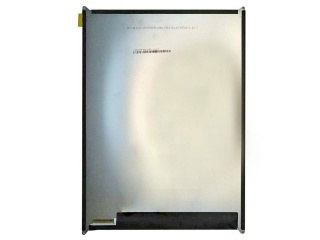

| Nombor Bahagian | TV097QXM-NW0 |
| Jenama | BOE |
| Saiz | 9.7 |
| Permohonan | Pad & Tablet |
| Resolusi | 1536×2048 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 1500:1 |
| Warna | 16.7M |
| Lampu latar | 6S6P |
| Antara muka | MIPI |
| jenama panel | BOE |
| model panel | TV097QXM-NW0 |
| saiz panel | 9.7" |
| jenis panel | a-Si TFT-LCD, LCM |
| resolusi | 1536(RGB)×2048, QXGA, 264PPI |
| format piksel | RGB Vertical Stripe |
| kawasan paparan | 147.456(W)×196.608(H) mm |
| pembukaan bezel | - |
| saiz garis besar | 152.536(W)×206.548(H) ×4.5(D) mm |
| permukaan | - |
| kecerahan | 350 cd/m² (Typ.) |
| nisbah kontras | 1500:1 (Typ.) (TM) |
| sudut pandangan | 85/85/85/85 (Min.)(CR≥10) |
| mod paparan | ADS, Normally Black, Transmissive |
| pandangan terbaik pada | Symmetry |
| masa tindak balas | 35 (Max.)(Tr+Td) |
| warna paparan | 16.7M 70% NTSC |
| jenis lampu | 6S6P WLED , Without Driver |
| kekerapan | 60Hz |
| skrin sentuh | Without |
| berat panel | 135g (Max.) |
| permohonan | Pad & Tablet |

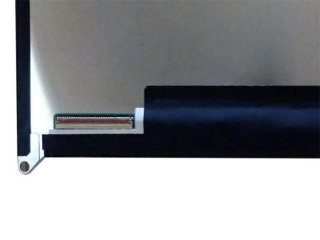

| antara muka isyarat | MIPI (4 data lanes) , 61 pins Connector |
| voltan masukan | 1.8/5.5/-5.5V (Typ.)(VDDI/AVDD/AVEE) |
| persekitaran | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
| AM-1024768M2TMQW-T00H | AMPIRE | 9.7 | 1024×768 |
| HQ097QX1-IPS | Other | 9.7 | 2048×1536 |
| LP097QX1-SPA1 | LG Display | 9.7 | 2048×1536 |
| LP097QX1-SPAV | LG Display | 9.7 | 2048×1536 |
| LP097QX3-SPAV | LG Display | 9.7 | 1536×2048 |
| LP097X02-SLAA | LG Display | 9.7 | 1024×768 |
| LP097X02-SLN1 | LG Display | 9.7 | 1024×768 |
| LQ097L1JY02Z | SHARP | 9.7 | 2048×1536 |
| LTL097QL01-A01 | Samsung | 9.7 | 2048×1536 |
| LTN097QL01-A01 | Samsung | 9.7 | 2048×1536 |
