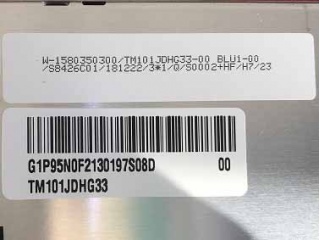

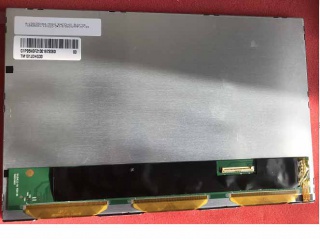

| Nombor Bahagian | TM101JDHG33 |
| Jenama | TIANMA |
| Saiz | 10.1 |
| Permohonan | Industrial Medical I |
| Resolusi | 1280×800 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 700:1 |
| Warna | 262K/16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama | TIANMA |
| saiz pepenjuru | 10.1 inch |
| format piksel | 1280(RGB)×800 [WXGA] 149PPI |
| kawasan aktif | 216.96(H)×135.6(V) mm |
| kawasan bezel | 219.96(H)×138.6(V) mm |
| kecerahan | 900 cd/m² (Typ.) |
| arah pandang | Symmetry |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| warna sokongan | 262K/16.7M 50% NTSC |
| berat badan | 280g (Typ.) |
| kadar bingkai | 60Hz |
| jenis antara muka | LVDS (1 ch, 6/8-bit) , 40 pins Connector |
| bekalan kuasa | 3.3V (Typ.) |
| persekitaran | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -40 ~ 80 °C |
| model | TM101JDHG33 |
| menaip | a-Si TFT-LCD , LCM |
| konfigurasi | RGB Vertical Stripe |
| garis besar malap. | 229.8(H)×149(V) ×9.6(D) mm |
| rawatan | Hard coating |
| nisbah kontras | 700:1 (Typ.) (TM) |
| masa tindak balas | 25 (Typ.)(Tr+Td) |
| mod operasi | SFT, Normally Black, Transmissive |
| sumber cahaya | WLED , 40K hours , With LED Driver |
| direka untuk | Industrial Medical Imaging Outdoor High Brightness |
| panel sentuh | Without |
