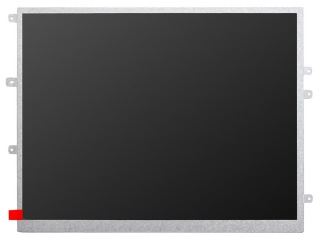

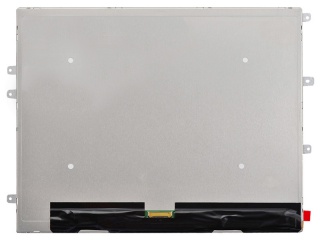

| Nombor Bahagian | TM097TDHG04-02 |
| Jenama | TIANMA |
| Saiz | 9.7 |
| Permohonan | Pad & Tablet Industr |
| Resolusi | 1024×768 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | 6S6P |
| Antara muka | LVDS |
| jenama panel | TIANMA |
| saiz panel | 9.7" |
| resolusi | 1024(RGB)×768, XGA, 132PPI |
| kawasan paparan | 196.608(W)×147.456(H) mm |
| saiz garis besar | 210.2(W)×166.3(H) ×5.85(D) mm |
| kecerahan | 350 cd/m² (Typ.) |
| sudut pandangan | 70/70/60/70 (Typ.)(CR≥10) |
| pandangan terbaik pada | 12 o'clock |
| warna paparan | 262K 50% NTSC |
| kekerapan | 60Hz |
| berat panel | 200g (Typ.) |
| antara muka isyarat | LVDS (1 ch, 6-bit) , 30 pins Connector |
| voltan masukan | 3.3V (Typ.) |
| persekitaran | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| model panel | TM097TDHG04-02 |
| jenis panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| pembukaan bezel | 200.91(W)×152.27(H) mm |
| permukaan | Clear |
| nisbah kontras | 500:1 (Typ.) (TM) |
| mod paparan | TN, Normally White, Transmissive |
| masa tindak balas | 20/25 (Typ./Max.)(Tr+Td) |
| jenis lampu | 6S6P WLED , 30K hours , Without Driver |
| skrin sentuh | Without |
| permohonan | Pad & Tablet Industrial |
