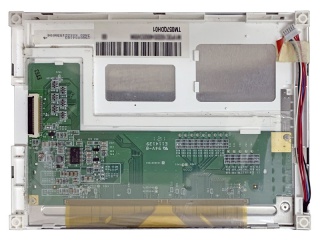

| Nombor Bahagian | TM057KDH01-10 |
| Jenama | TIANMA |
| Saiz | 5.7 |
| Permohonan | Industrial |
| Resolusi | 320×240 |
| Komposisi | LCM, a-Si TFT-LCD |
| Kecerahan | |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | 5S3P |
| Antara muka | Parallel |
| pengilang | TIANMA |
| nama model | TM057KDH01-10 |
| saiz skrin | 5.7 inch |
| jenis skrin | LCM, a-Si TFT-LCD |
| nombor piksel | 320(RGB)×240 (QVGA) 70PPI |
| susunan | RGB Vertical Stripe |
| kawasan aktif (mm) | 115.2 × 86.4 (H×V) |
| garis besar (mm) | 144 × 104.6 × 12.8 (H×V×D) |
| kawasan bezel (mm) | 118.2 × 89.4 (H×V) |
| rawatan | Antiglare, Hard coating (3H) |
| kecerahan | 400 cd/m² (Typ.) |
| nisbah kontras | 500 : 1 (Typ.) (TM) |
| sudut pandangan | 70/70/60/70 (Typ.)(CR≥10) |
| tindak balas | 20 (Typ.)(Tr+Td) ms |
| pandangan yang baik di | 12 o'clock |
| mod kerja | TN, Normally White, Transmissive |
| kedalaman warna | 262K 52% NTSC |
| lampu latar | 5S3P WLED , 50K hours , No Driver |
| jisim | 157g (Typ.) |
| digunakan untuk | Industrial |
| kadar segar semula | 60Hz |
| skrin sentuh | Without |
| jenis isyarat | Parallel RGB (1 ch, 6-bit) , Connector 33 pins |
| bekalan voltan | 3.3V (Typ.) |
| maks. penilaian | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| KCS057QV1AJ-G32 | Kyocera | 5.7 | 320×240 |
| KG057QV1CA-G020W | Kyocera | 5.7 | 320×240 |
| KG057QV1CF-G050 | Kyocera | 5.7 | 320×240 |
| LT057AA34B00 | TOSHIBA | 5.7 | 320×240 |
| TM057KDH01 | Tianma | 5.7 | 320×240 |
| TM057KDH02 | Tianma | 5.7 | 320×240 |
| TM057KDH03 | Tianma | 5.7 | 320×240 |
| TM057KDH05 | Tianma | 5.7 | 320×240 |
| TM057KDHG03 | Tianma | 5.7 | 320×240 |
| TM057KDHG10 | Tianma | 5.7 | 320×240 |
