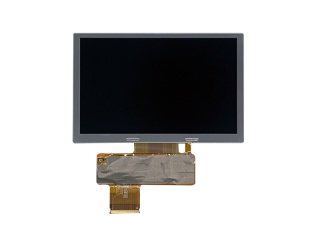

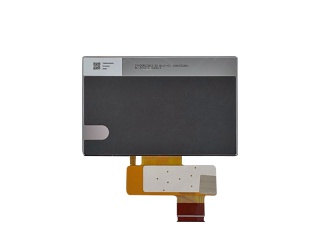

| Nombor Bahagian | TM050RDZG03-30 |
| Jenama | TIANMA |
| Saiz | 5.0 |
| Permohonan | Industrial |
| Resolusi | 800×480 |
| Komposisi | LCM, a-Si TFT-LCD |
| Kecerahan | |
| CR | 600:1 |
| Warna | 16.7M |
| Lampu latar | 3S6P |
| Antara muka | |
| pengilang | TIANMA |
| nama model | TM050RDZG03-30 |
| saiz skrin | 5.0 inch |
| jenis skrin | LCM, a-Si TFT-LCD |
| nombor piksel | 800(RGB)×480 (WVGA) 188PPI |
| susunan | RGB Vertical Stripe |
| kawasan aktif (mm) | 108 × 64.8 (H×V) |
| garis besar (mm) | 120.7 × 77.8 × 5.9 (H×V×D) |
| kawasan bezel (mm) | 111.1 × 67.9 (H×V) |
| rawatan | Antiglare, Hard coating (3H) |
| kecerahan | 1000 cd/m² (Typ.) |
| nisbah kontras | 600 : 1 (Typ.) (TM) |
| sudut pandangan | 70/70/50/70 (Typ.)(CR≥10) |
| tindak balas | 20/30 (Typ./Max.)(Tr+Td) ms |
| pandangan yang baik di | 12 o'clock |
| mod kerja | TN, Normally White, Transmissive |
| kedalaman warna | 16.7M 50% NTSC |
| lampu latar | 3S6P WLED , 50K hours |
| jisim | TBD |
| digunakan untuk | Industrial |
| kadar segar semula | 60Hz |
| skrin sentuh | Without |
| Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C |
| AT050TN33 | Innolux | 5.0 | 480×272 |
| DLC0500AIG-2 | Other | 5.0 | 640×480 |
| LD050WQ1-TD02 | LG Display | 5.0 | 480×272 |
| LQ050T5DG02 | SHARP | 5.0 | 400×240 |
| LS050T1SX12(K) | SHARP | 5.0 | 1080×1920 |
| LTE052T-45 | Philips | 5.0 | 320×234 |
| PA050XS7 | E Ink | 5.0 | 320×234 |
| TFD50W72MS | TOSHIBA | 5.0 | |
| TM050JVZG28 | Tianma | 5.0 | 720×1280 |
| TM050RDH03 | Tianma | 5.0 | 800×480 |
