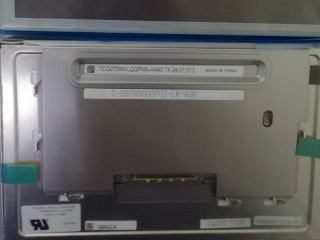

| Nombor Bahagian | TCG070WVLQGPNN-AN40 |
| Jenama | Kyocera |
| Saiz | 7.0 |
| Permohonan | Industrial Outdoor H |
| Resolusi | 800×480 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 750:1 |
| Warna | 262K/16.2M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| pengilang | Kyocera |
| saiz skrin | 7.0 inch |
| nombor piksel | 800(RGB)×480 (WVGA) 133PPI |
| kawasan aktif (mm) | 152.4 × 91.44 (H×V) |
| kawasan bezel (mm) | 154.4 × 93.4 (H×V) |
| kecerahan | 1000 cd/m² (Typ.) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| pandangan yang baik di | Symmetry |
| kedalaman warna | 262K/16.2M 50% NTSC |
| jisim | 230g |
| kadar segar semula | 60Hz |
| jenis isyarat | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
| bekalan voltan | 3.3V (Typ.) |
| maks. penilaian | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
| nama model | TCG070WVLQGPNN-AN40 |
| jenis skrin | LCM , a-Si TFT-LCD |
| susunan | RGB Vertical Stripe |
| garis besar (mm) | 169.8 × 109.7 × 9.7 (H×V×D) |
| rawatan | Antiglare |
| nisbah kontras | 750 : 1 (Typ.) (TM) |
| tindak balas | 18/12 (Typ.)(Tr/Td) ms |
| mod kerja | AWV, Normally Black, Transmissive |
| lampu latar | WLED , 70K hours , With LED Driver |
| digunakan untuk | Industrial Outdoor High Brightness Automotive Display |
| skrin sentuh | Without |
| CLAA070NJ07CW | CPT | 7.0 | 1024×600 |
| DLC0700OZG-T-1 | Other | 7.0 | 800×480 |
| G070Y3-T01 | Innolux | 7.0 | 800×480 |
| HSD070IFW1-B00 | HannStar | 7.0 | 1024×600 |
| LQ070T1LG01 | SHARP | 7.0 | 800×480 |
| LQ070T5GC01 | SHARP | 7.0 | |
| LQ070Y5DA02A | SHARP | 7.0 | 800×480 |
| Q070LRE-L81 | Innolux | 7.0 | 1024×600 |
| TCG070WVLBA-A00 | Kyocera | 7.0 | 800×480 |
| TM070JDHP01-00 | Tianma | 7.0 | 1280×800 |
