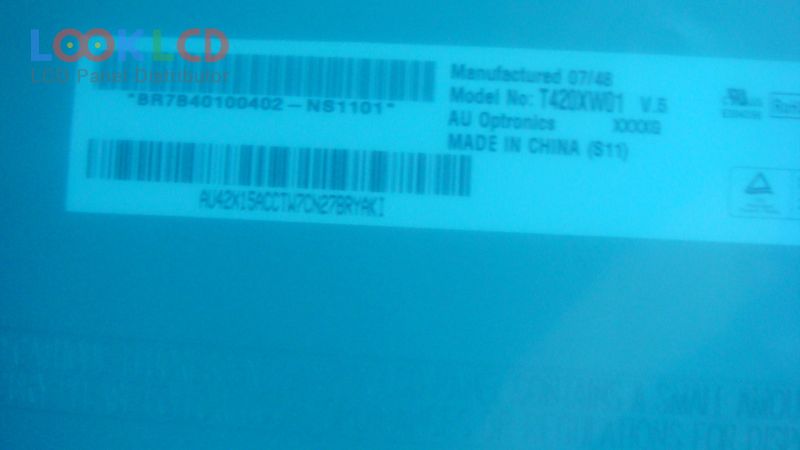

| Nombor Bahagian | T420XW01 V5 |
| Jenama | AUO |
| Saiz | 42 |
| Permohonan | LCTV |
| Resolusi | 1366×768 |
| Komposisi | LCM |
| Kecerahan | 500 |
| CR | 1500:1 |
| Warna | 16.7M |
| Lampu latar | CCFL |
| Antara muka | LVDS |
| jenama panel | AUO |
| model panel | T420XW01 V5 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 42 inch |
| resolusi | 1366(RGB)×768 , WXGA |
| mod paparan | AMVA, Normally Black, Transmissive |
| kawasan aktif | 930.25×523.01 mm |
| garis besar | 983×576 mm |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | 500 cd/m² (Typ.) |
| nisbah kontras | 1500:1 (Typ.) |
| warna paparan | 16.7M (8-bit), CIE193172% |
| masa tindak balas | 15/5 (Typ.)(Tr/Td); 6 (Typ.)(G to G) |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 20 pcsCCFLEmbedded (Inverter) |
| antara muka isyarat | LVDS (1 ch, 8-bit), 30 pins |
| voltan masukan | 12.0V (Typ.) |
| permohonan | LCTV |
