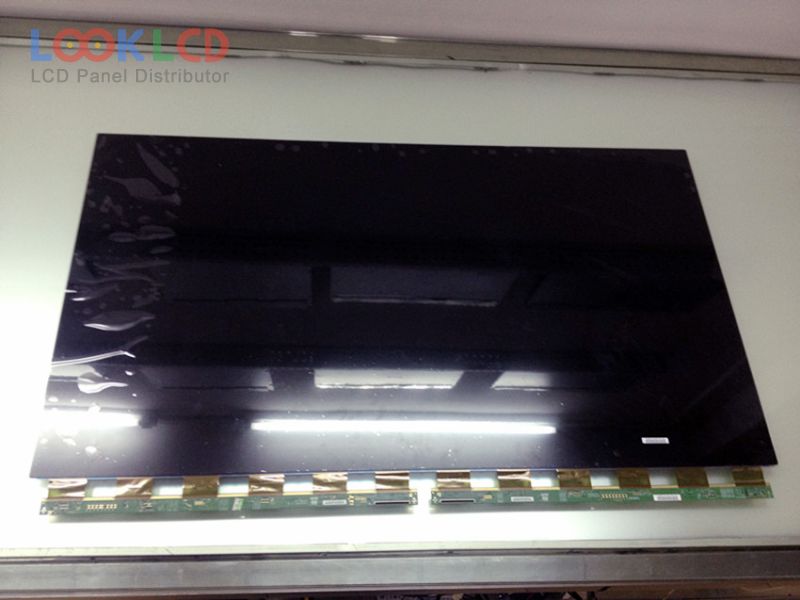

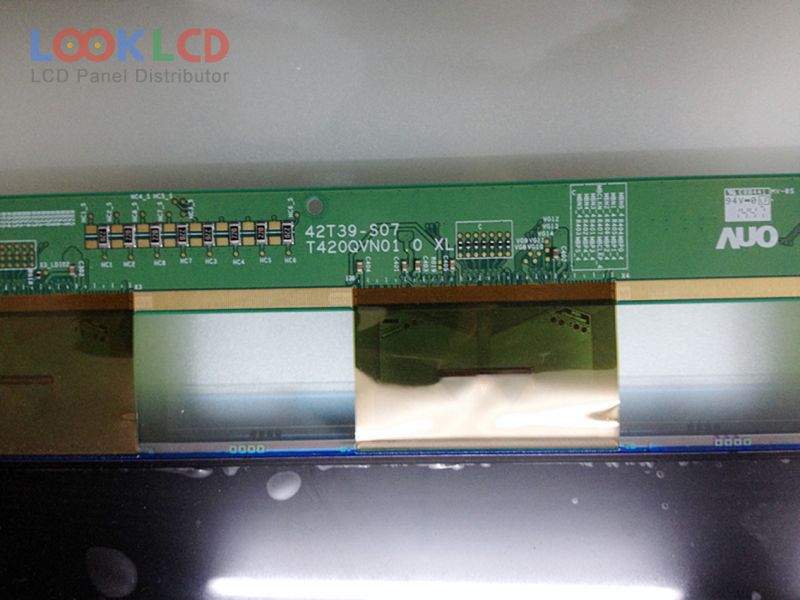

T420QVN01.0 CELL

T420QVN01.0 CELL
T420QVN01.0 CELL
T420QVN01.0 CELL thumb T420QVN01.0 CELL thumb
Jenama
AUO
Saiz
42
Permohonan
LCTV
Resolusi
3840×2160
Komposisi
CELL
Kecerahan
0
CR
4000:1
Warna
1.07B
Lampu latar
No B/L
Antara muka
V-by-One
In Stock
15820
Spesifikasi

Nombor Bahagian T420QVN01.0 CELL
JenamaAUO
Saiz42
PermohonanLCTV
Resolusi3840×2160
KomposisiCELL
Kecerahan0
CR4000:1
Warna1.07B
Lampu latarNo B/L
Antara mukaV-by-One
jenama panelAUO
model panelT420QVN01.0 CELL
jenis panel a-Si TFT-LCD , CELL
saiz panel42 inch
resolusi3840(RGB)×2160 , UHD
mod paparanAMVA3, Normally Black, Transmissive
kawasan aktif930.24×523.26 mm
garis besar946.24×540.06 mm
permukaanAntiglare (Haze 2%), Hard coating (3H)
kedalaman kaca0.50+0.50 mm
ketransmisian4.55% (Typ.)(with Polarizer)
nisbah kontras4000:1 (Typ.)
warna paparan1.07B (8-bit + Hi-FRC)
masa tindak balas6.5 (Typ.)(G to G)
sudut pandangan89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
kekerapan120Hz
antara muka isyaratV-by-One 8 lane, 51 pins
voltan masukan12.0V (Typ.)
permohonanLCTV
